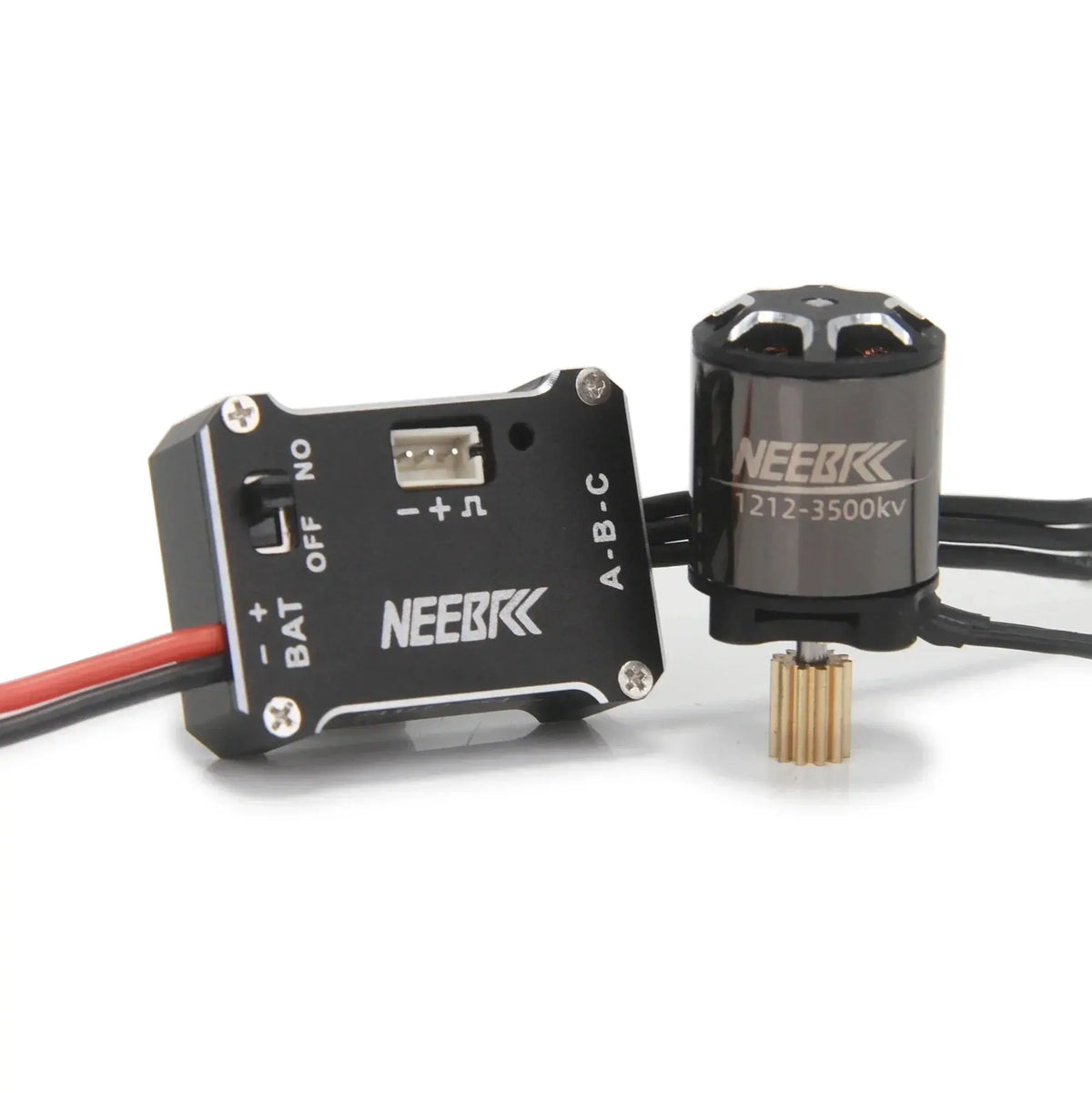

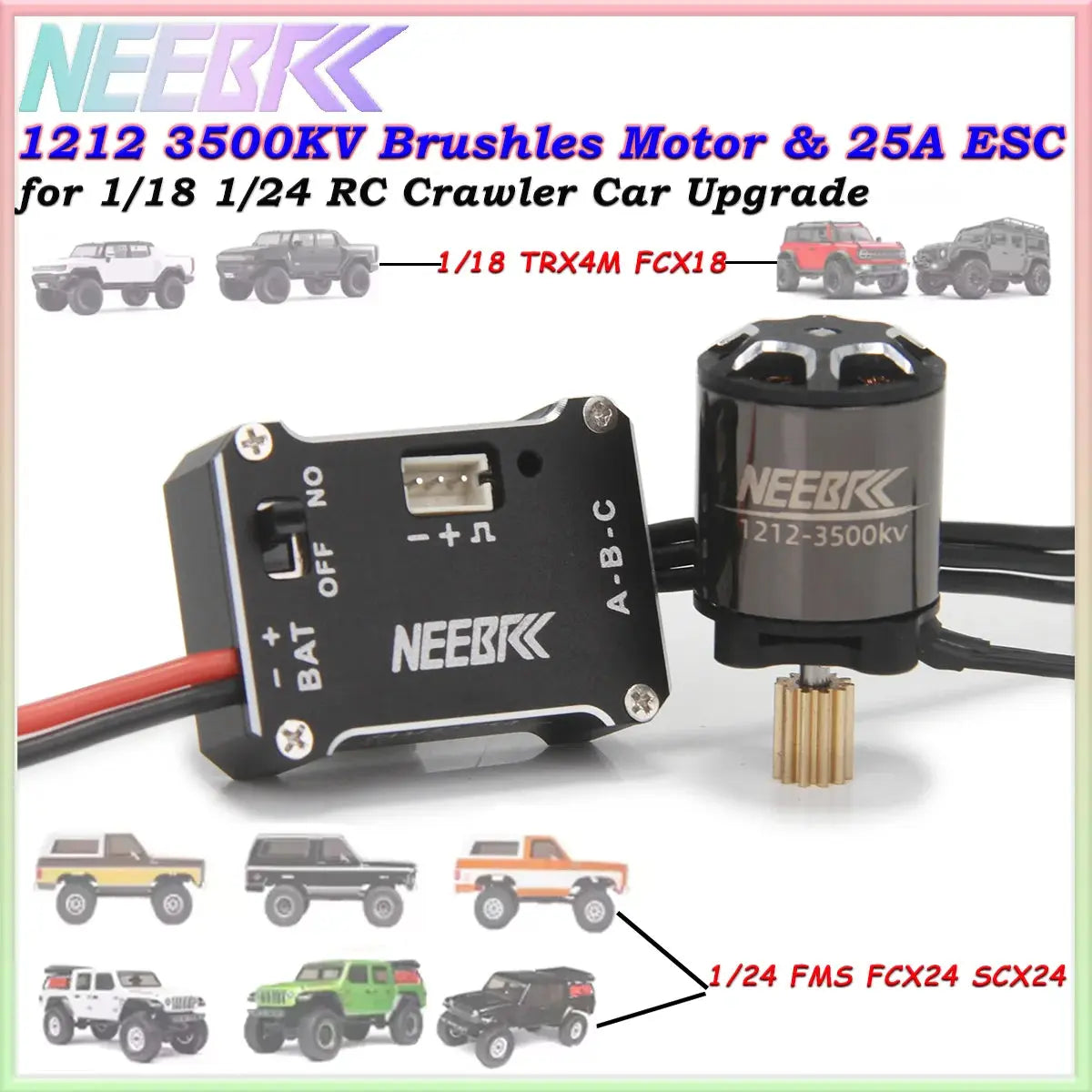

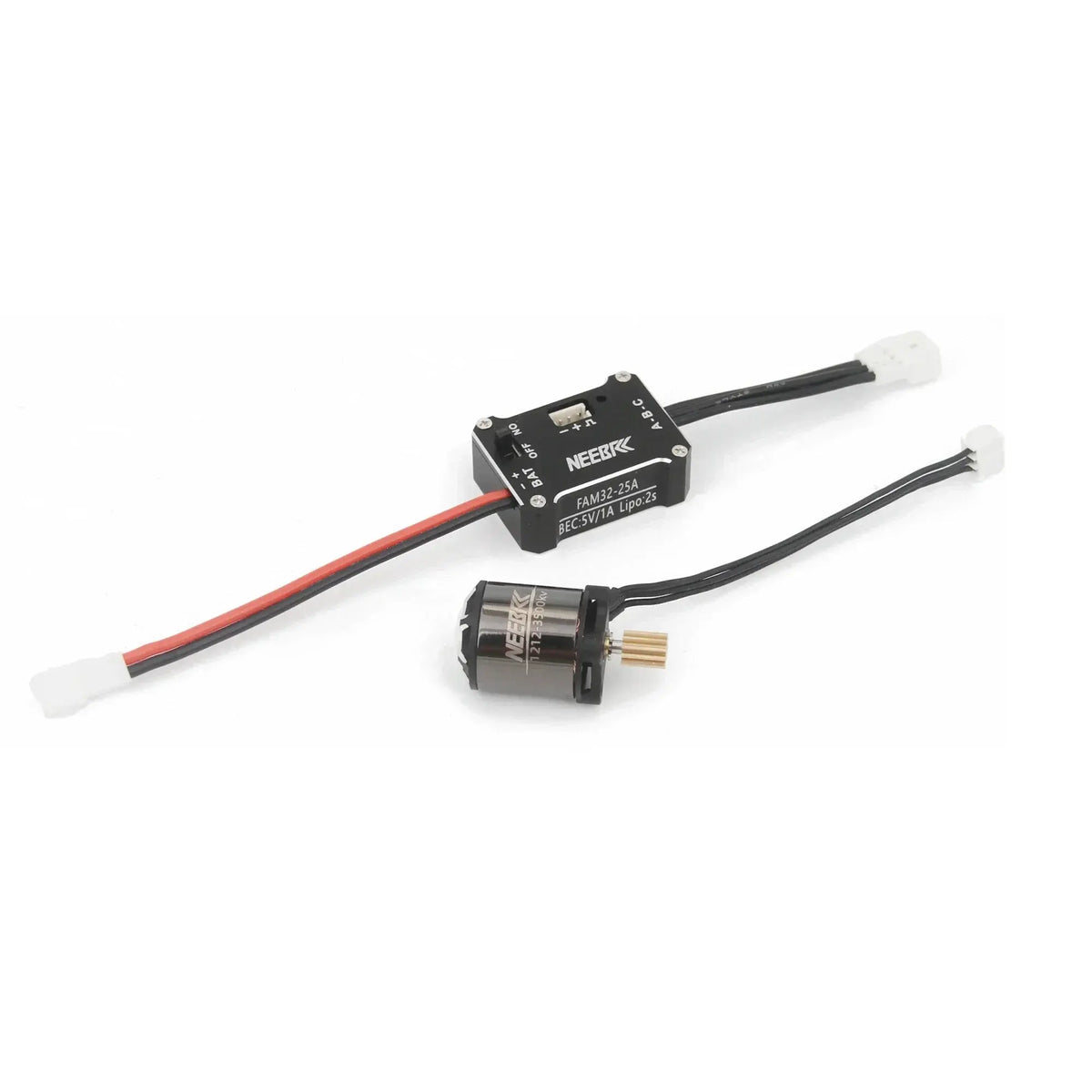

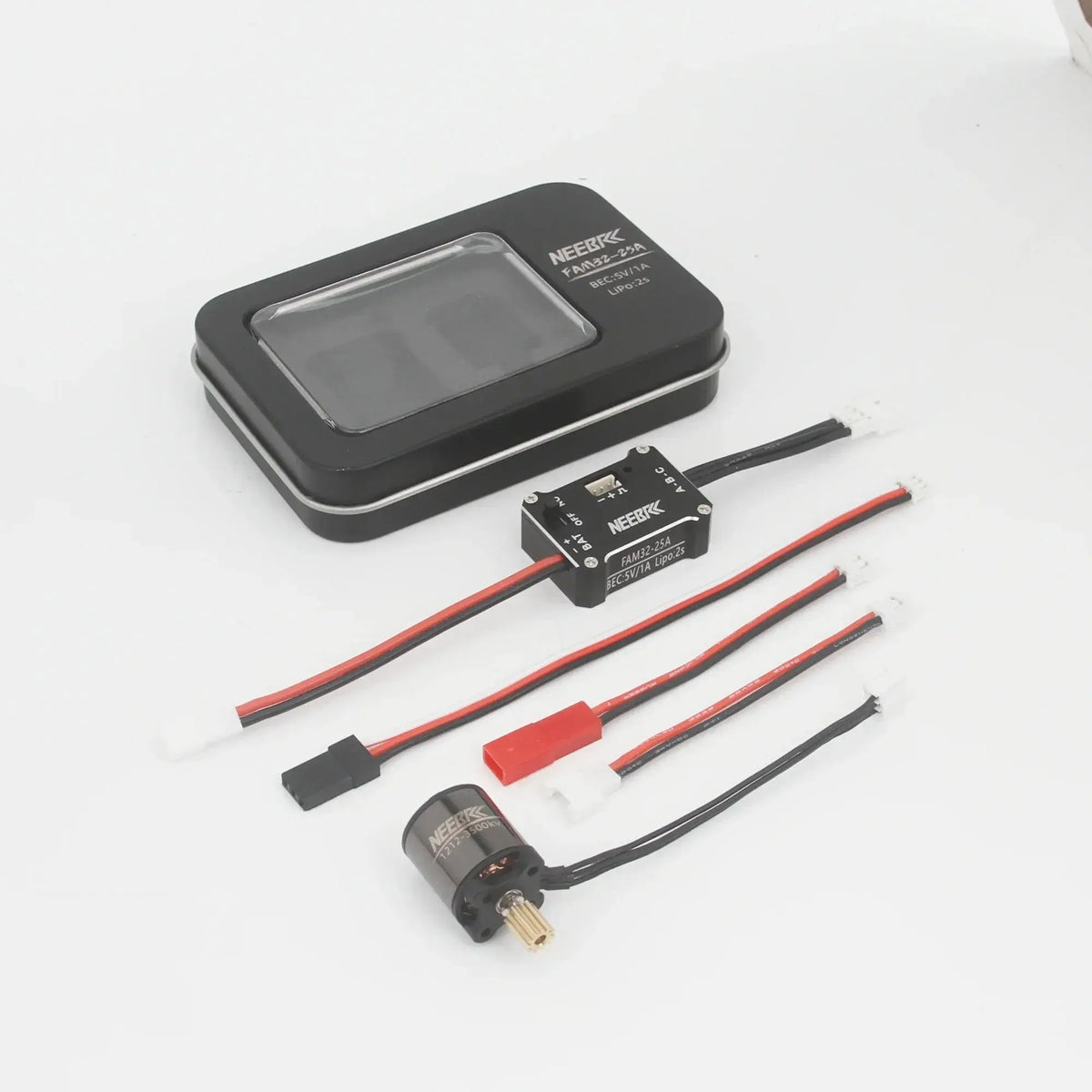

NEEBRC 1212 3500KV Brushless Motor with 25A ESC for 1/18 and 1/24 RC Crawlers
SPECIFICATIONSBrand Name: NeebRCCertification: CEChoice: yesFor Vehicle Type: CarsFour-wheel Drive Attributes: AssemblageHigh-concerned chemical: noneIs Batteries Included: NoIs Electric: No batteryIs it battery/power...
In stock. Ships worldwide.
About this RC car
Why you'll love it
SPECIFICATIONS
Brand Name: NeebRC
Certification: CE
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 1212 3500KV Motor FAM32-25A ESC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 25A
Technical parameters: Value 6
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
Features:
1-Simulated FOC,extremely excellent low-speed linearity and powerfulow-speed torque
2-Parameter adjusters and software can be used to adjust and adapt tovarious types of motors
3-Low voltage protection
4-Metal case.
5-High integration, small size, easy to install
Specifications:

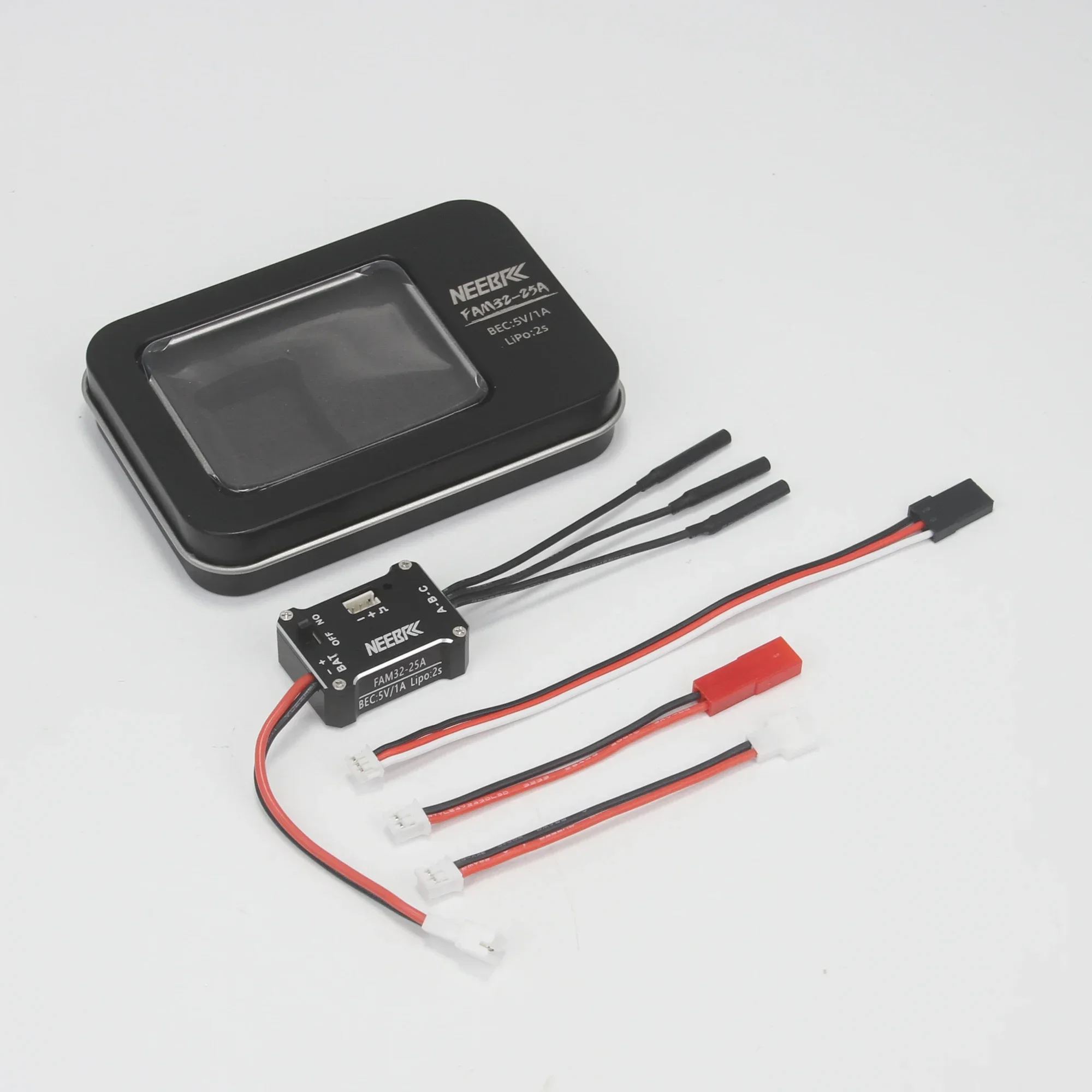

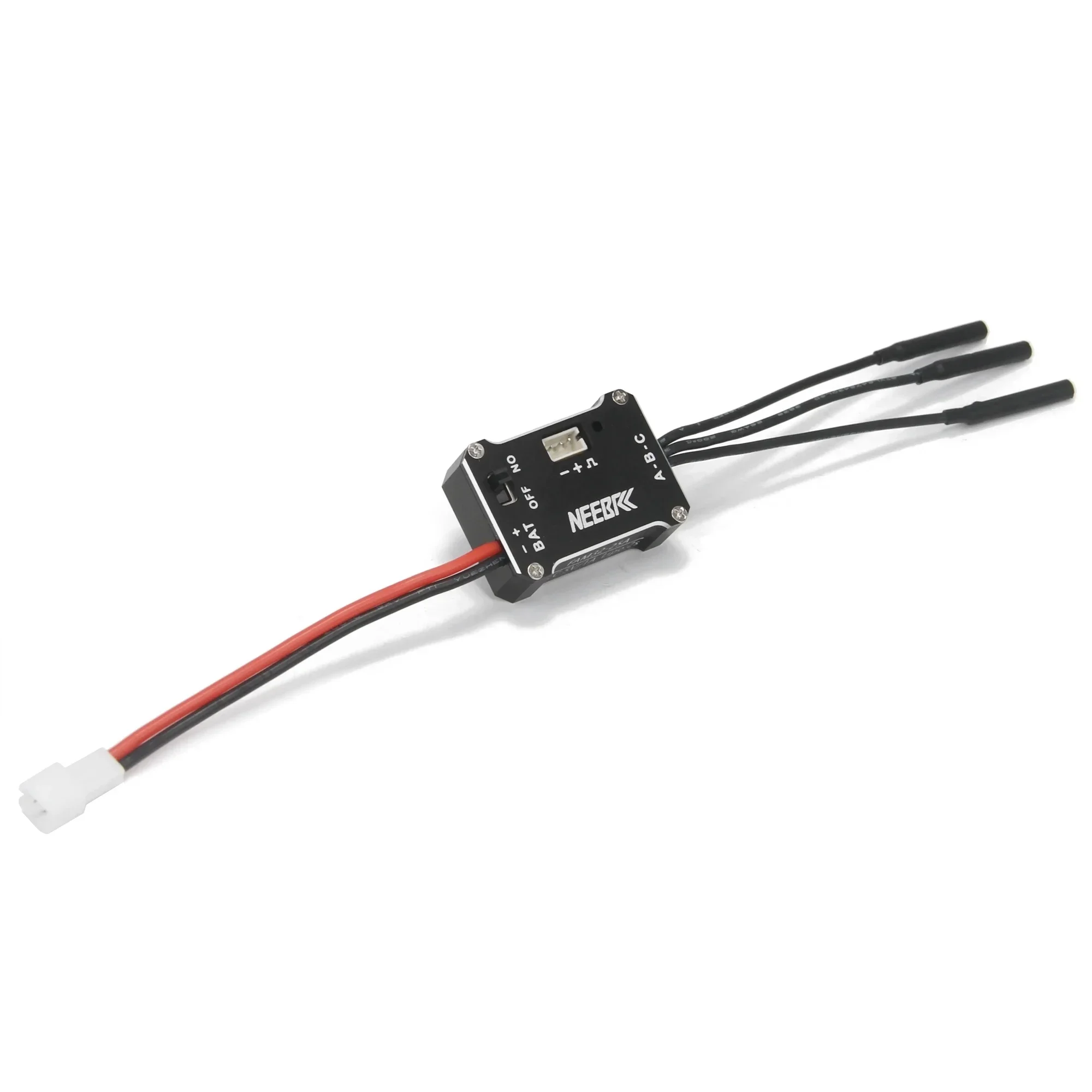

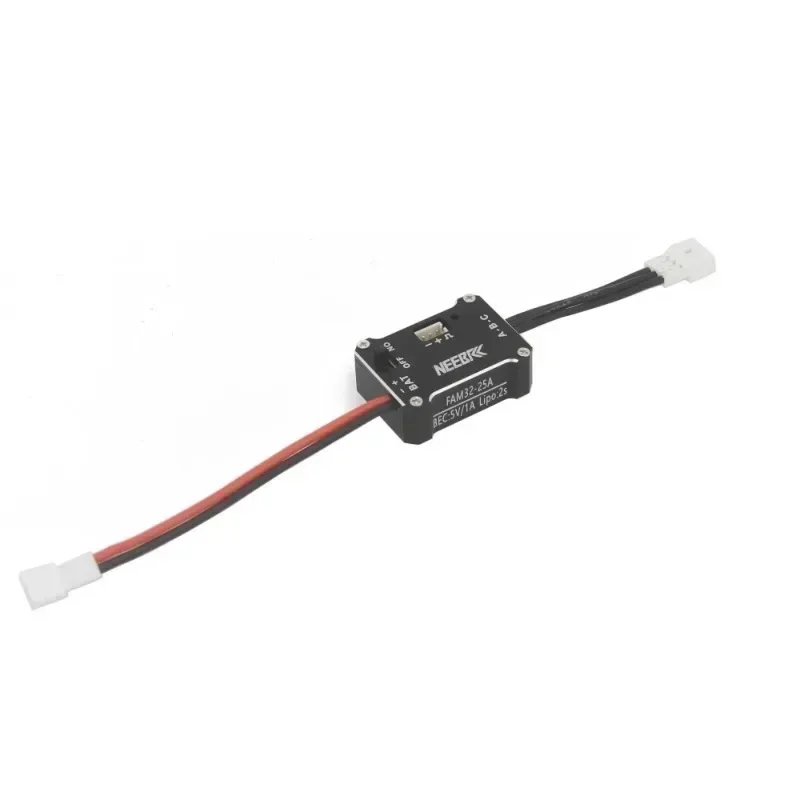

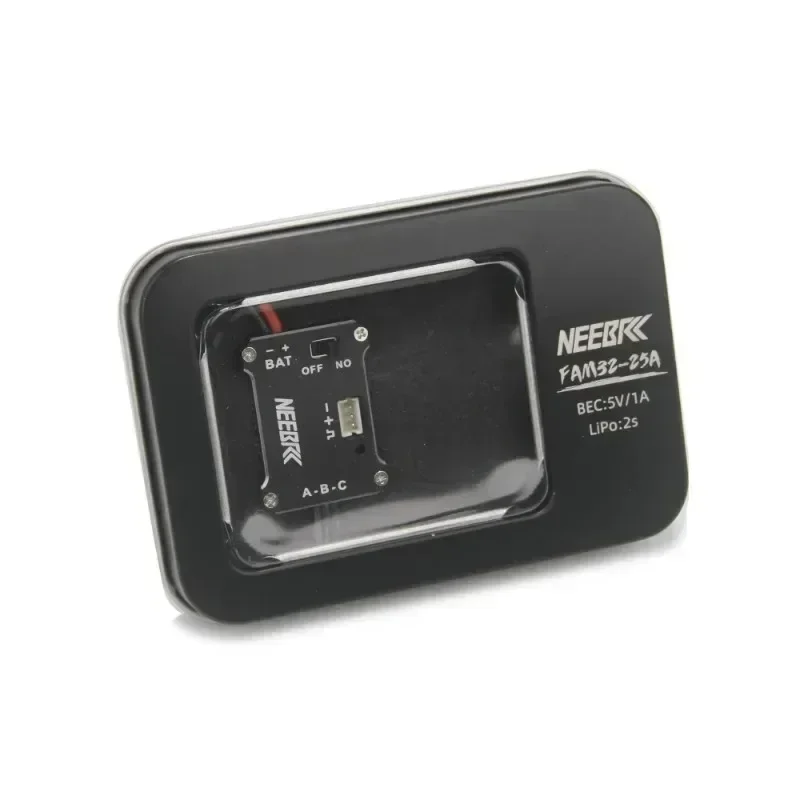

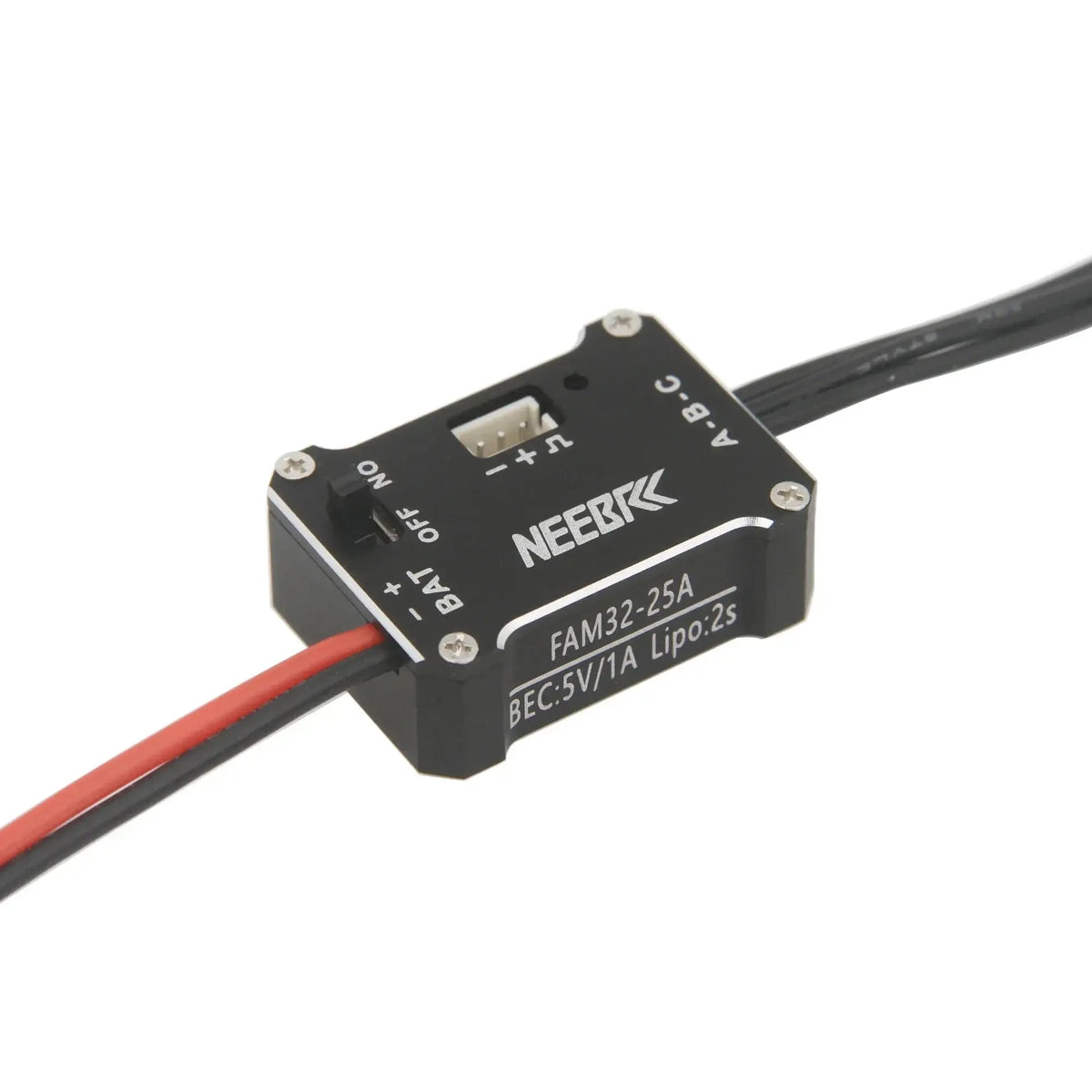

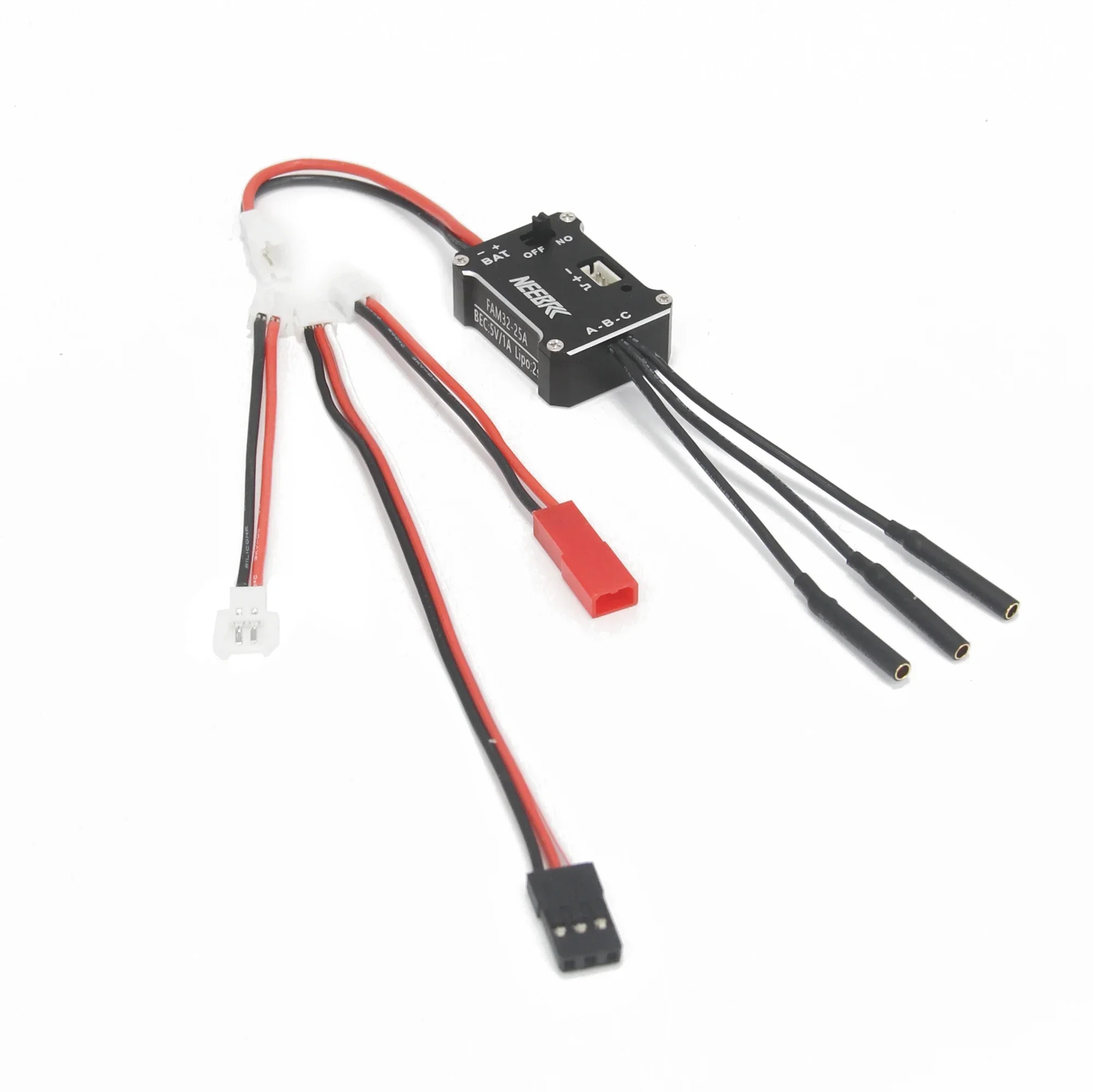

Item Name:FAM32-25A 25A Brushless ESC
Color: Black
Rated Voltage Range:2S Li-PO
Current(A): Continuous/Peak Current: 25A/60A
BEC Output: 5V/1A
Motor Type: 1212/1224/1621 0uter rotor Motors
Compatible Vehicles:1/18 1/24 1/28Climbing/Drifting/Off Road Vehicle
Dimensions: 29.3*21.3*10.4mm
Weight: 12g
Usage:

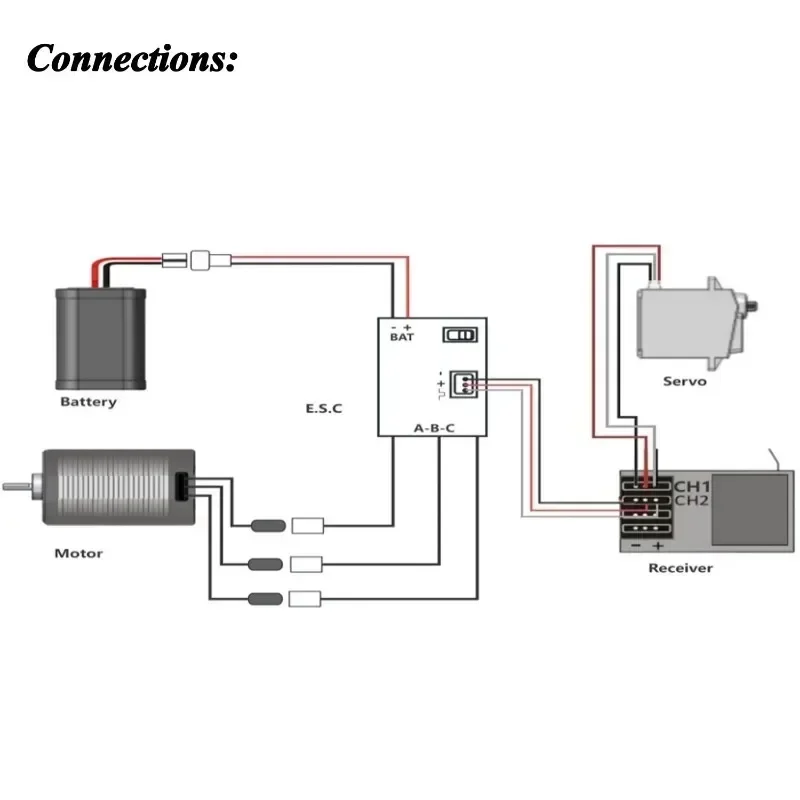

1) Connect the power supply, motor, and receiver correctly according to the instructions in the diagram.
2) Connect the motor and the three wires of the electric controller in any order. If the throttle is reversed, switch
the two wires for connection.
3) Adjust the throttle center position by adjusting the throttle fine adjustment knob and making a few long beeps to
the motor, This is the throttle center position.
4) when the throttle adiustment is not in the neutral position, there is no response to the throttle during operation5) "he transmitter throttle adiustment 0 value is only a reference center, sometimes it may deviate to the left or right.
Specifications:

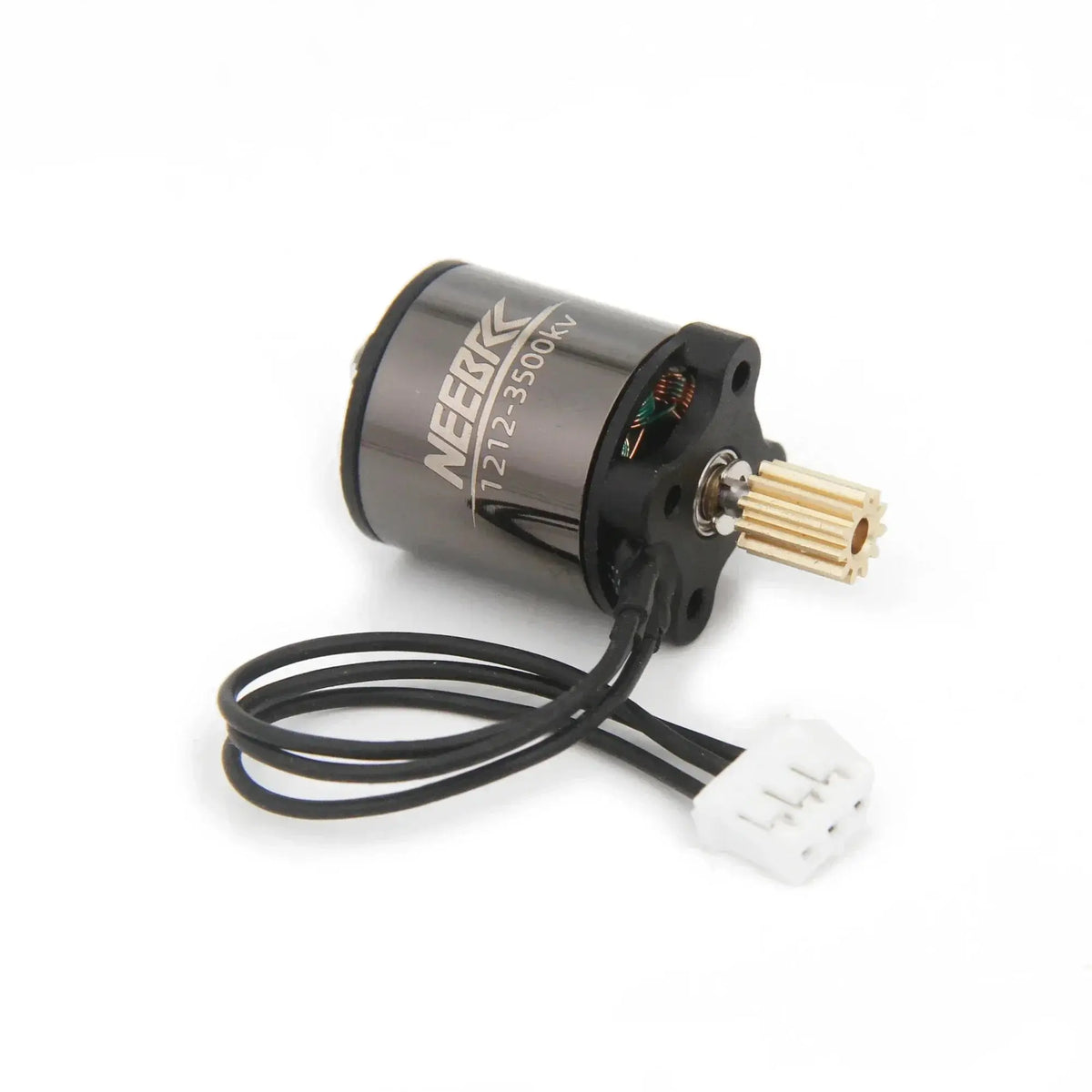

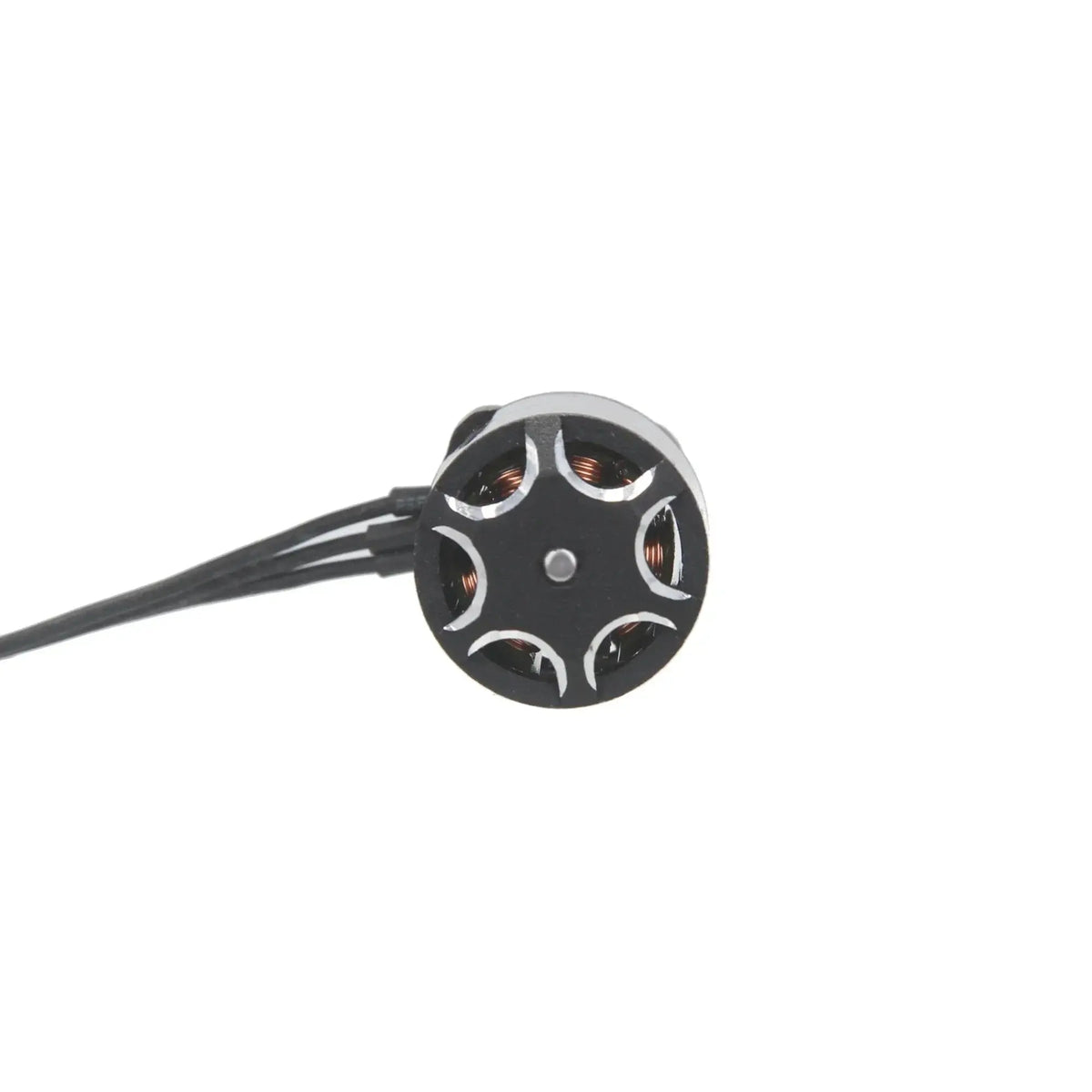

Item Name:1212 3500KV Brushless Motor
Color: Black
Rated Voltage Range:1S-3S Li-PO, 7.4V
No load current (A/7.4V): ≤0.7A
No load speed (rpm/7.4V): 25900 ± 5%
Motor internal resistance (m Ω) (ambient temperature: 25 ℃) : 180m Ω± 3%
KV value: 3500KV
Number of slots: 9N12P
Whole machine weight (g): 15.5g
Whole machine withstand voltage (DC): DC500V (3S)
Whole machine balance (mg): ≤ 15mg
Steering (end view of shaft extension): clockwise/counterclockwise
Operating environment temperature (℃): -10 ℃ -65 ℃
Storage temperature (℃): -10 ℃ -50 ℃
Storage humidity (%): ≤ 85%
Gear Number: 11T
Non destructive installation Trx4m.
