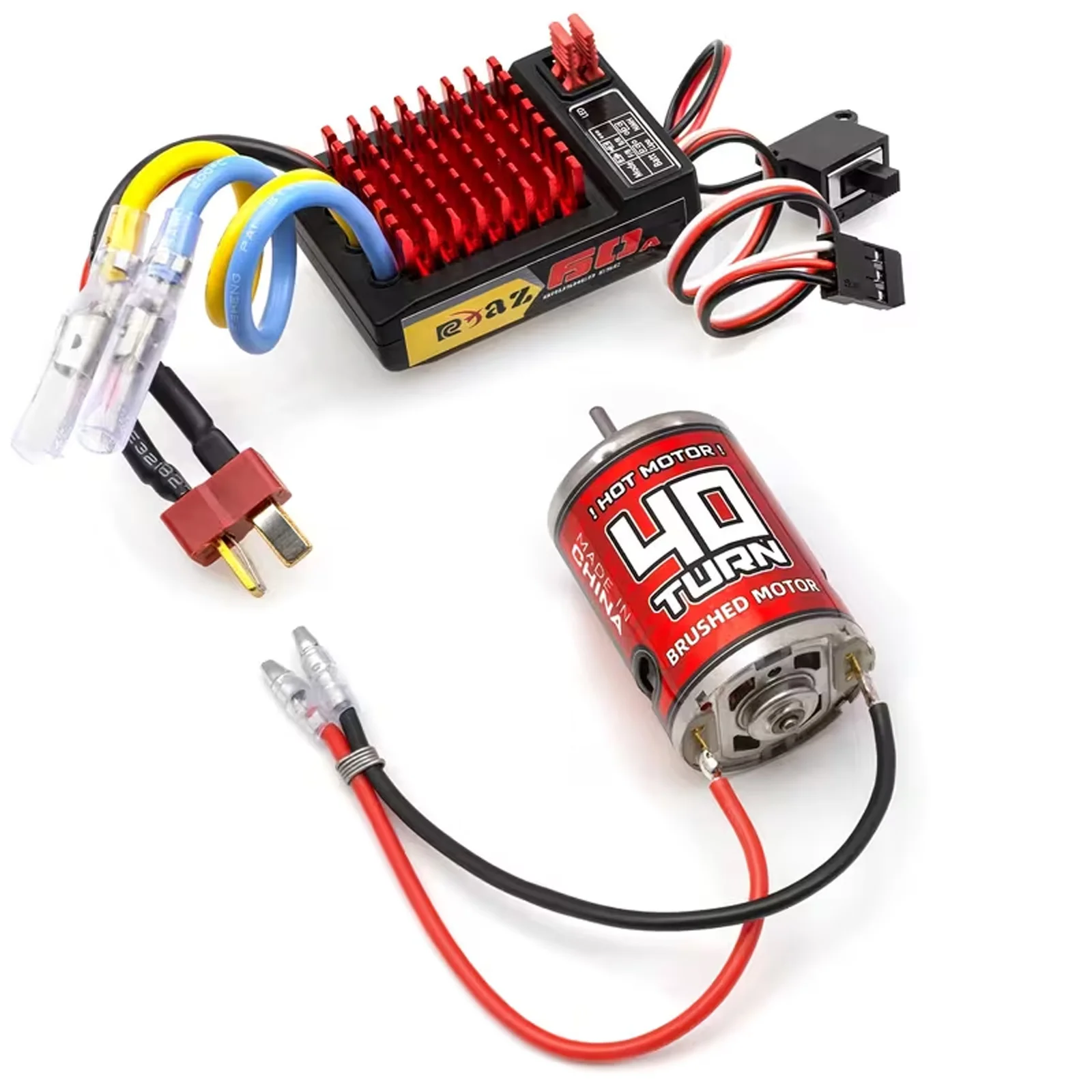

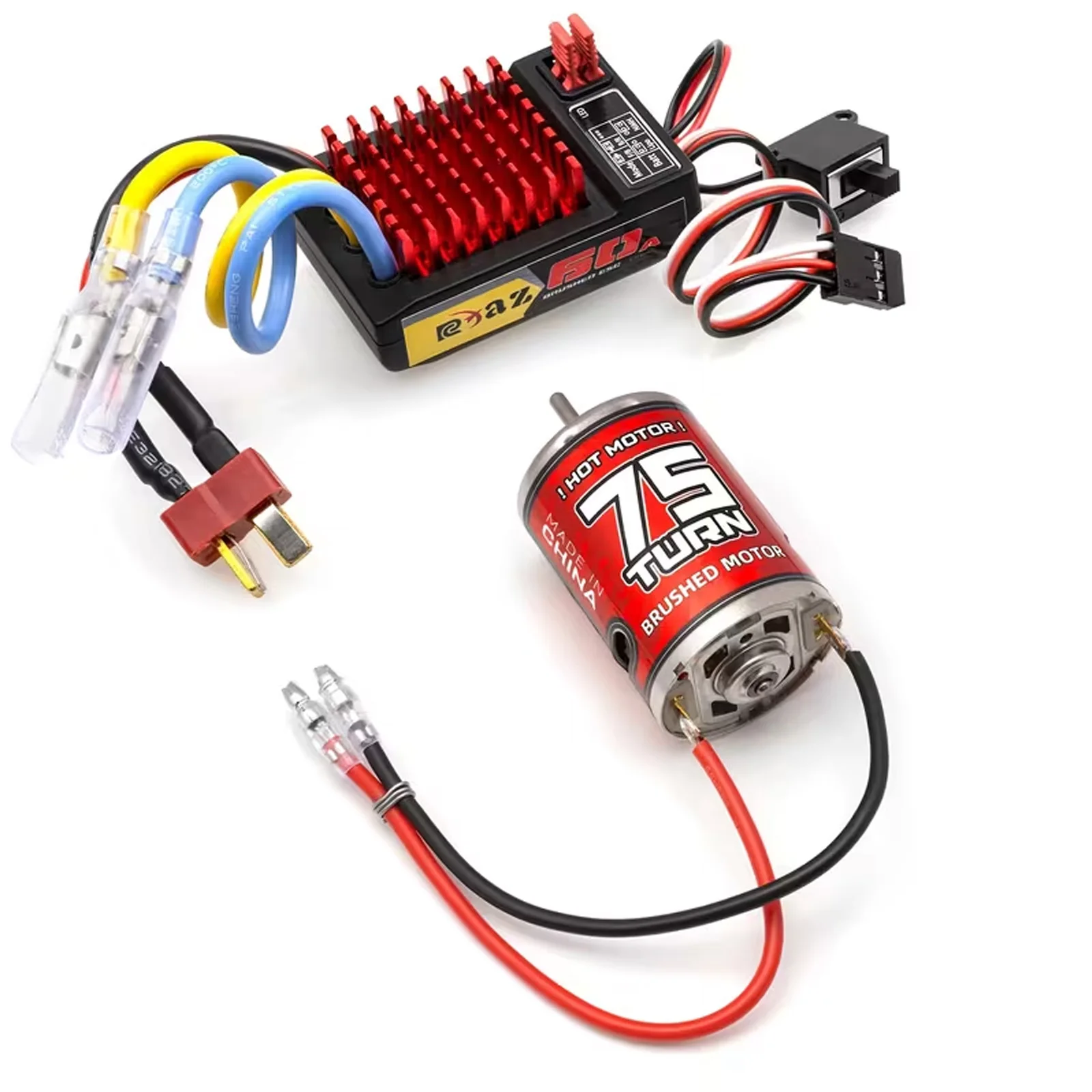

RCXAZ 540 Brushed Motor Matched AEY60 Bidirectional 60A Brushed ESC Combo, RC Upgrade Mod Kit For 1/10 RC Vehicle Arrma Traxxas HSP Redcat RC4WD Tamiya Axial SCX10 D90 1/10 RC Crawler Offroad Truck Buggy
Description Upgrade your remote-controlled vehicle’s drivetrain with the RCXAZ 540 PRO Brushed Motor and AEY60 60A ESC Power Combo Kit. Specially engineered for 1/10 scale RC crawlers, off-road trucks, buggies, and sc...
In stock. Ships worldwide.
About this RC car
Why you'll love it
Description

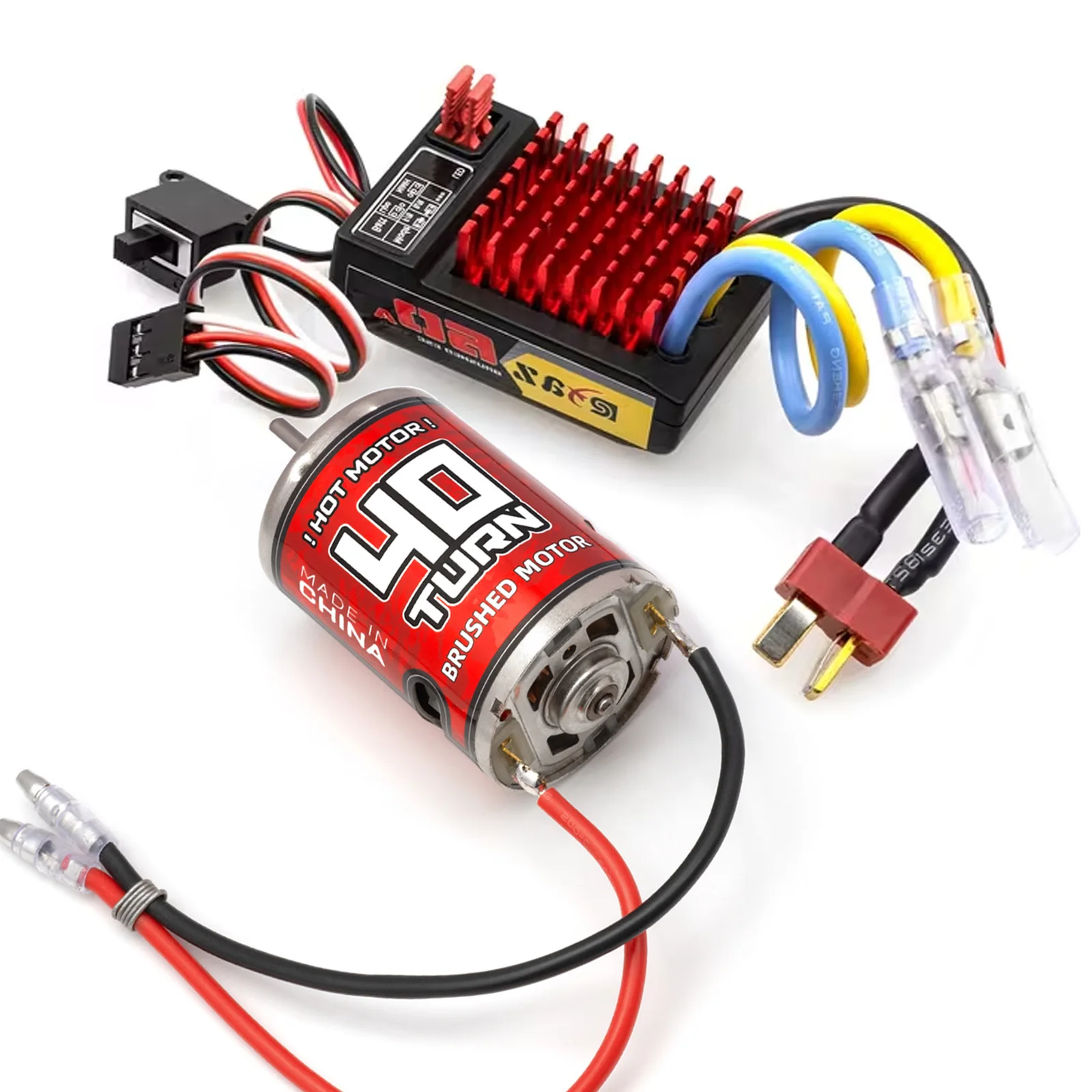

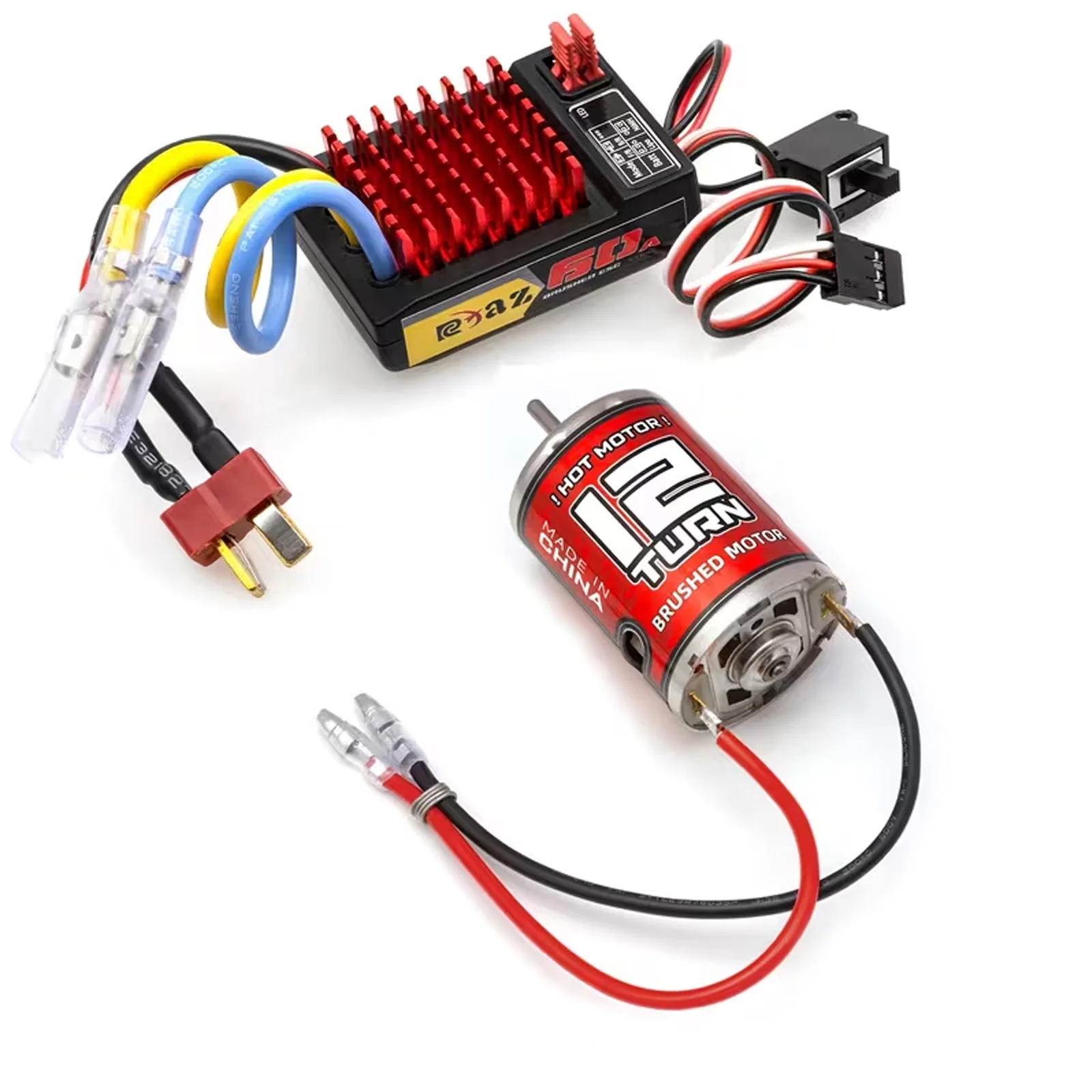

Upgrade your remote-controlled vehicle’s drivetrain with the RCXAZ 540 PRO Brushed Motor and AEY60 60A ESC Power Combo Kit. Specially engineered for 1/10 scale RC crawlers, off-road trucks, buggies, and scale trail rigs, this complete power upgrade kit delivers exceptional low-speed control, linear throttle response, and heavy-duty climbing torque. It is directly compatible with leading 1/10 scale chassis platforms, including Traxxas, Axial (SCX10, D90), RC4WD, Redcat, HSP, Arrma, and Tamiya.
Key Features & Technical Highlights

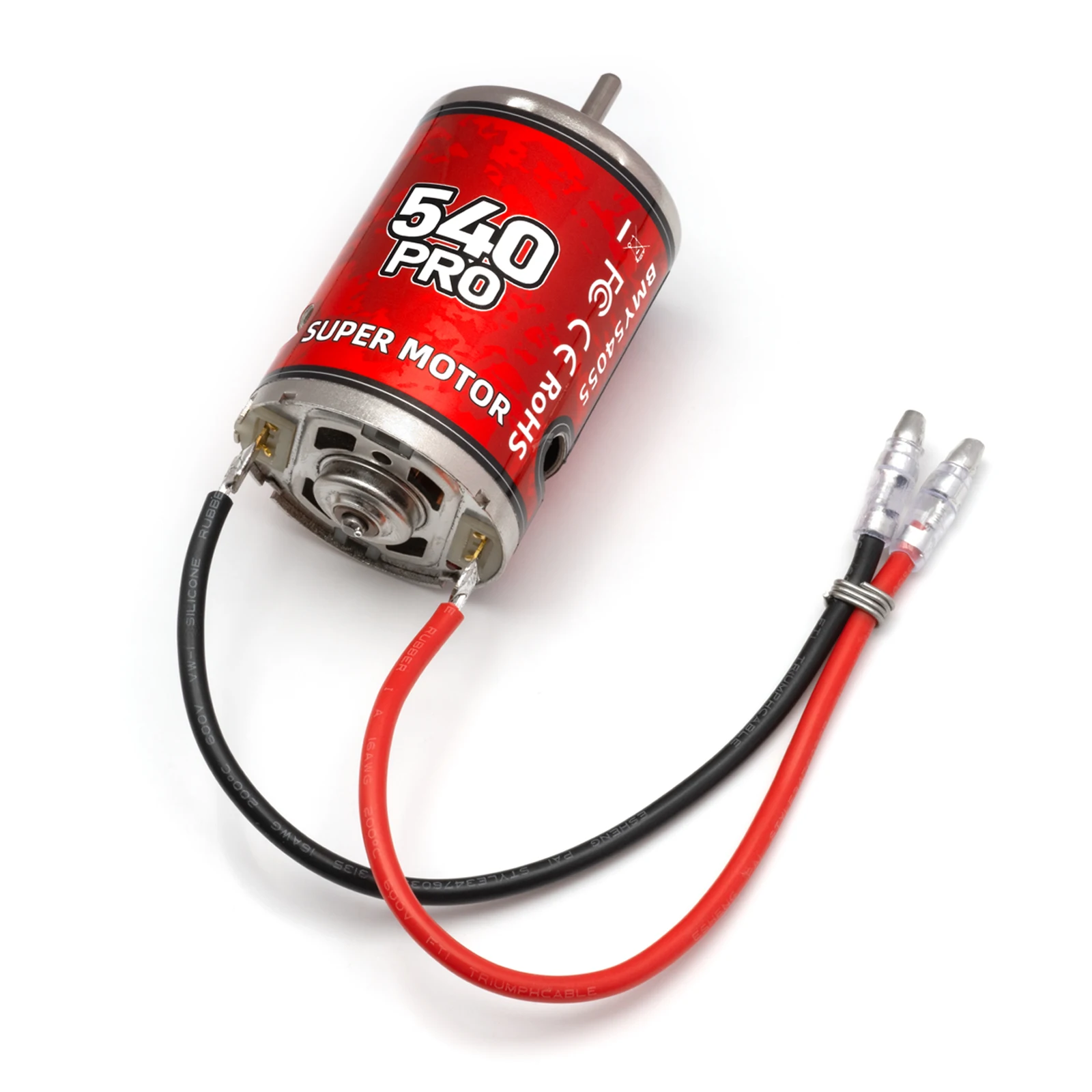

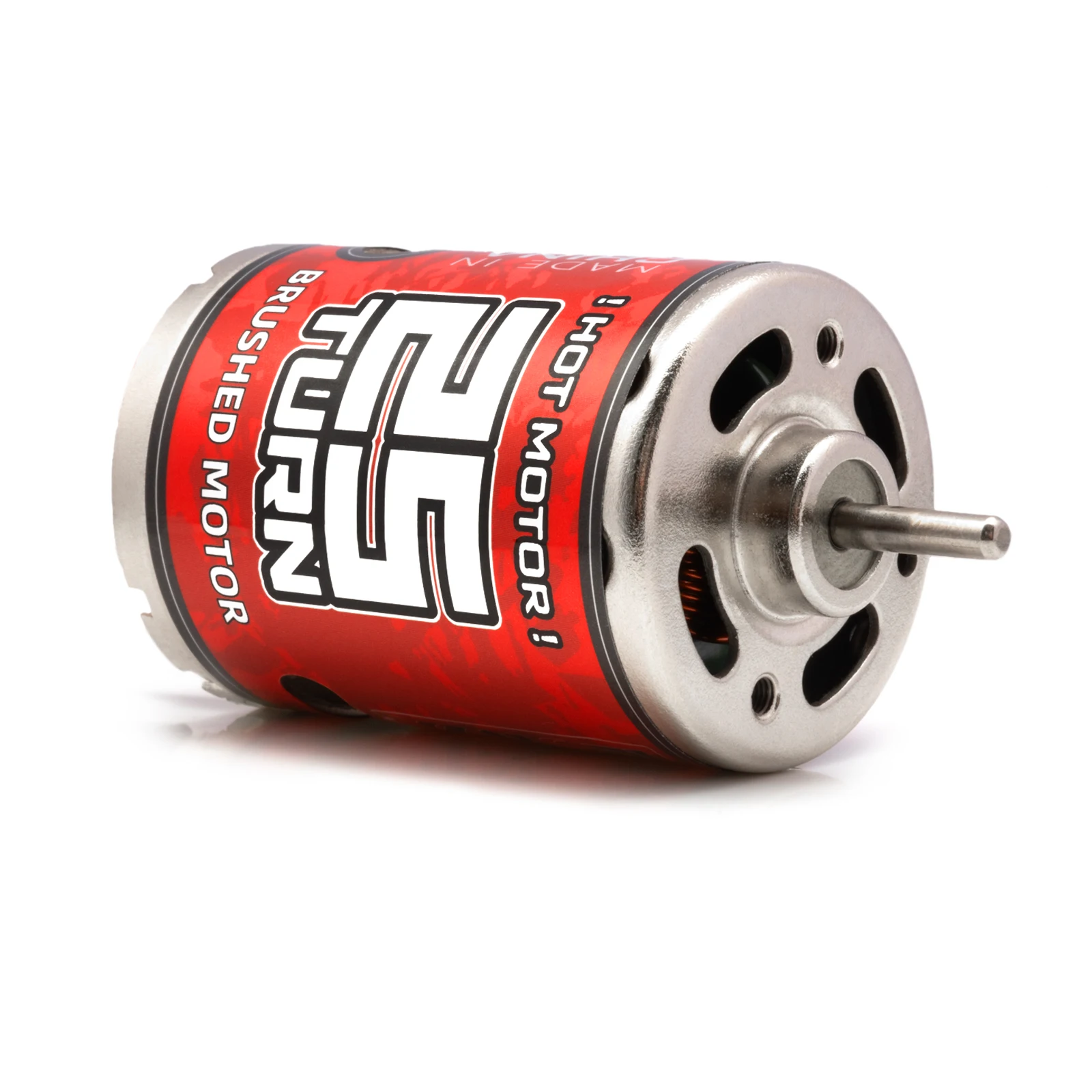

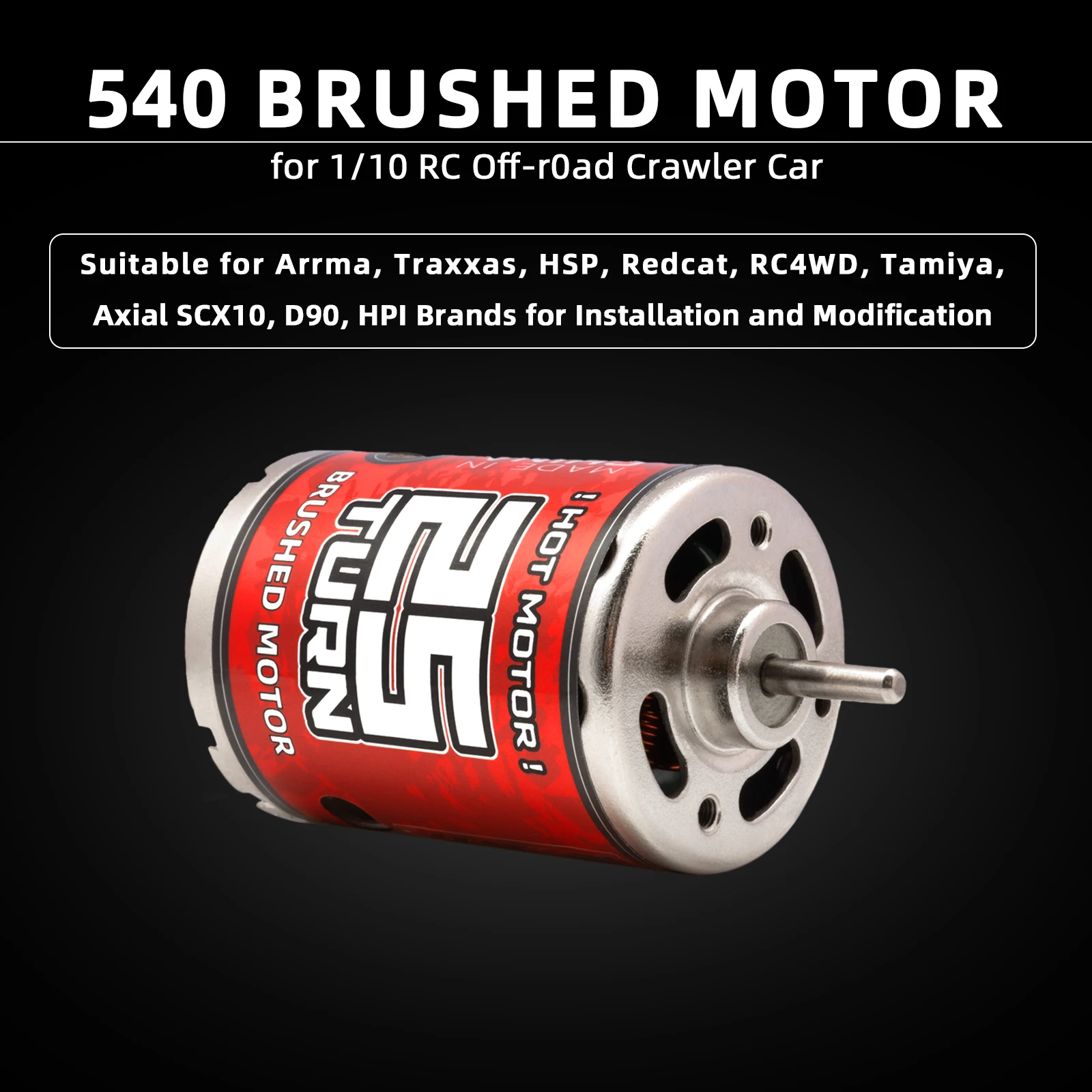

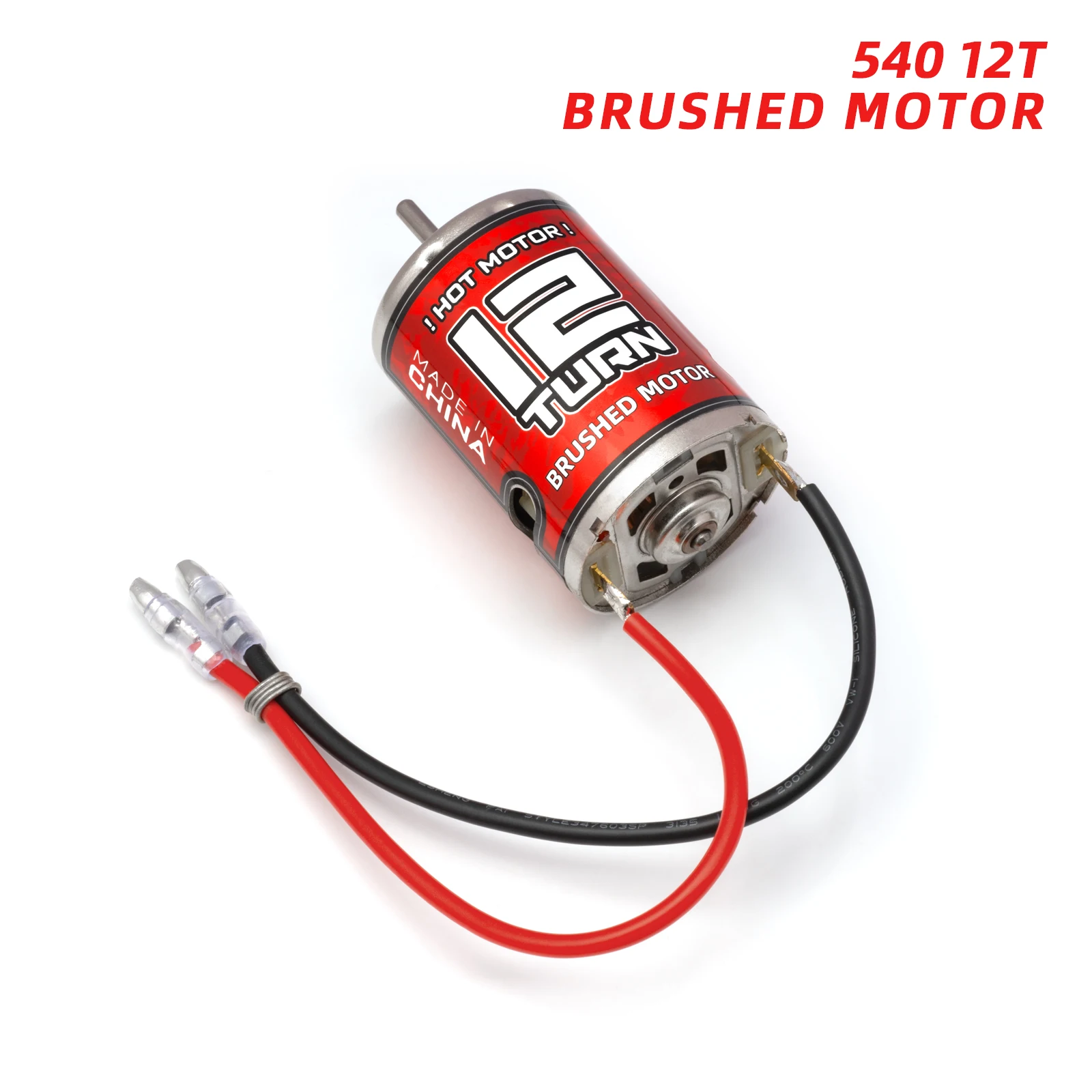

540 PRO High-Torque Brushed Motor
-
Custom-Tuned Steel Housing: Engineered with high-strength magnetic fields specifically tuned for steep climbing, trail crawling, and precise proportional throttle response.
-
Low Noise & Reduced Interference: Features an optimized internal rotor with integrated capacitors to minimize electrical noise, interference, and brush wear.
-

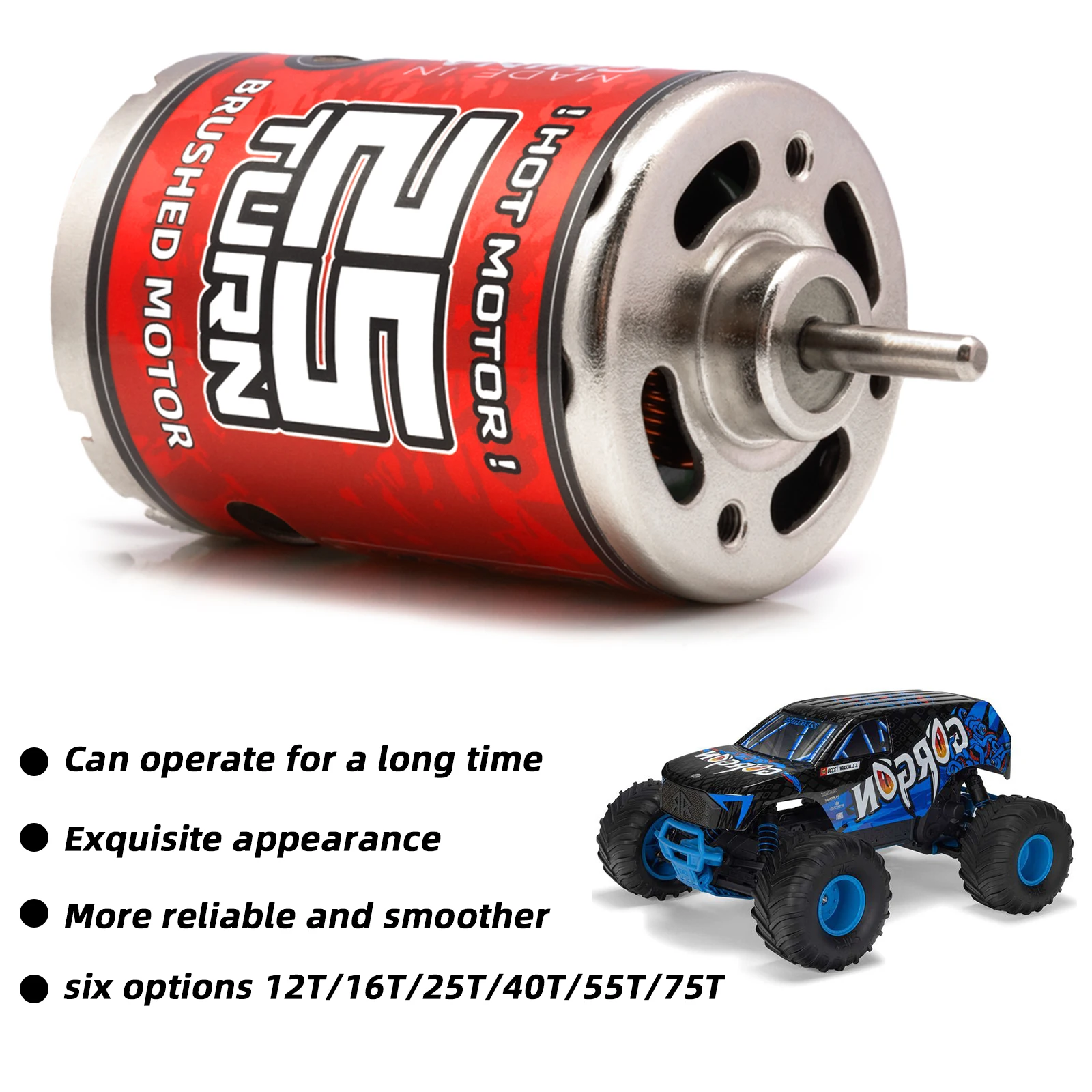

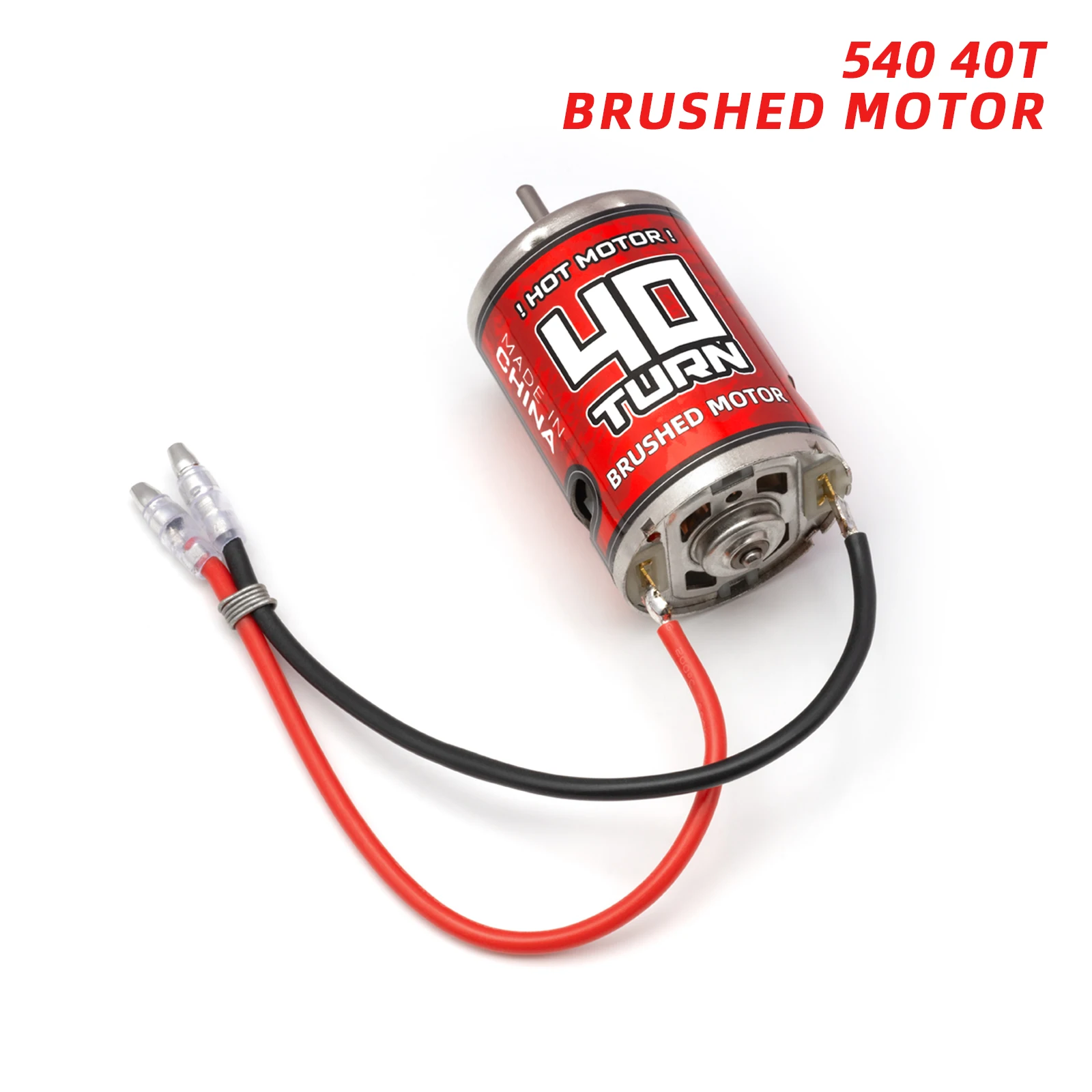

Versatile Turn Options: Select from multiple turn specifications to match your vehicle's weight and terrain demands (12T, 16T, 25T, 27T, 40T, 55T, and 75T).

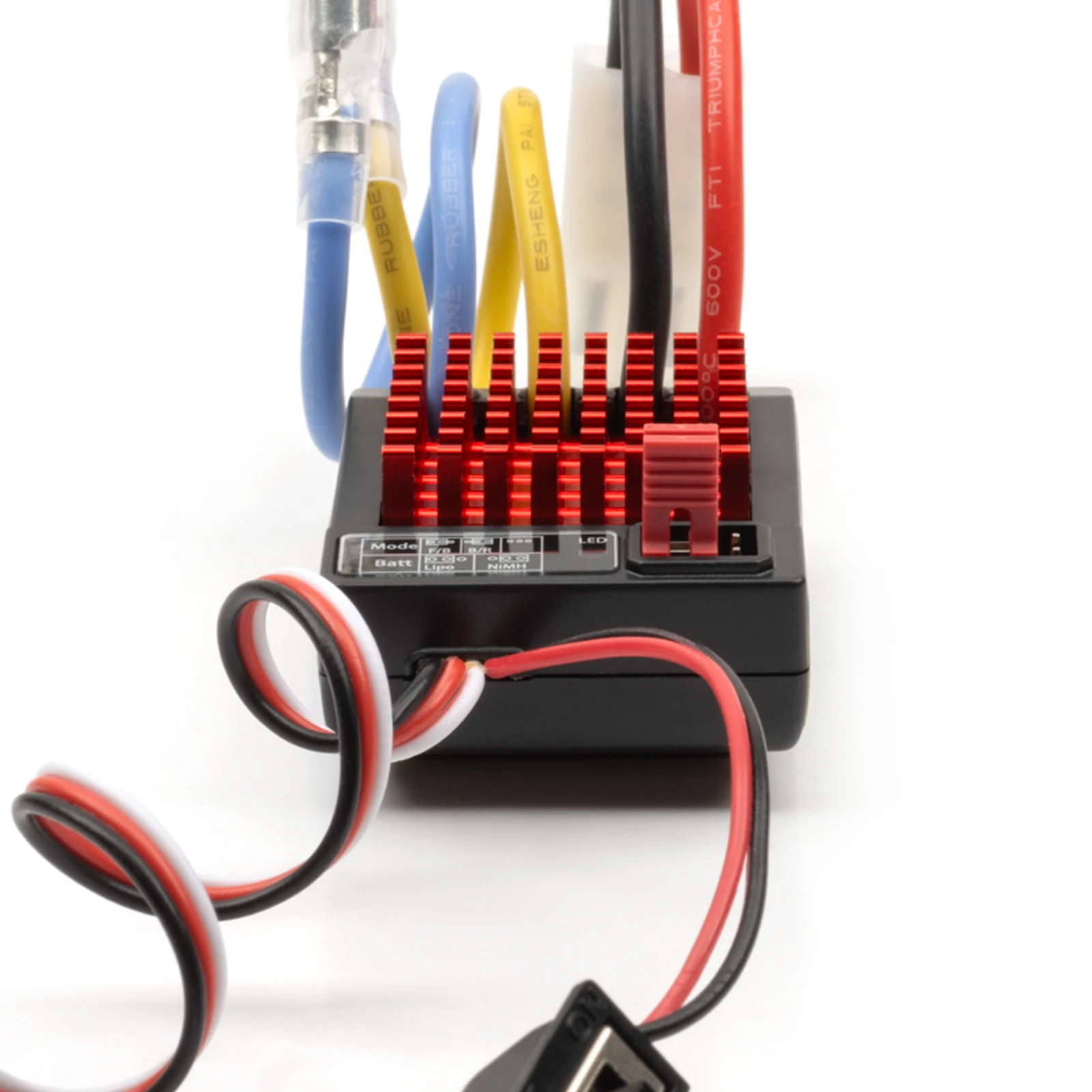

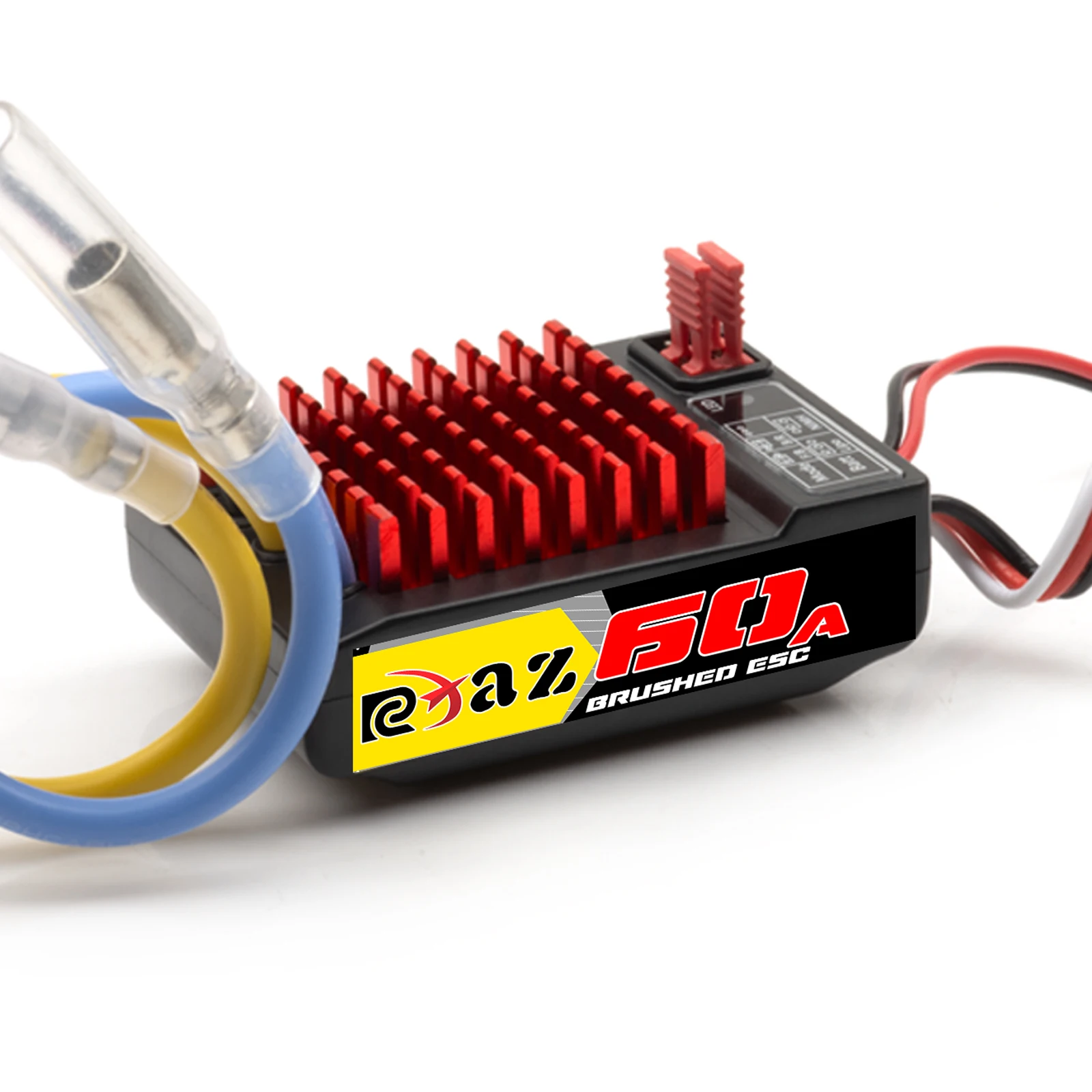

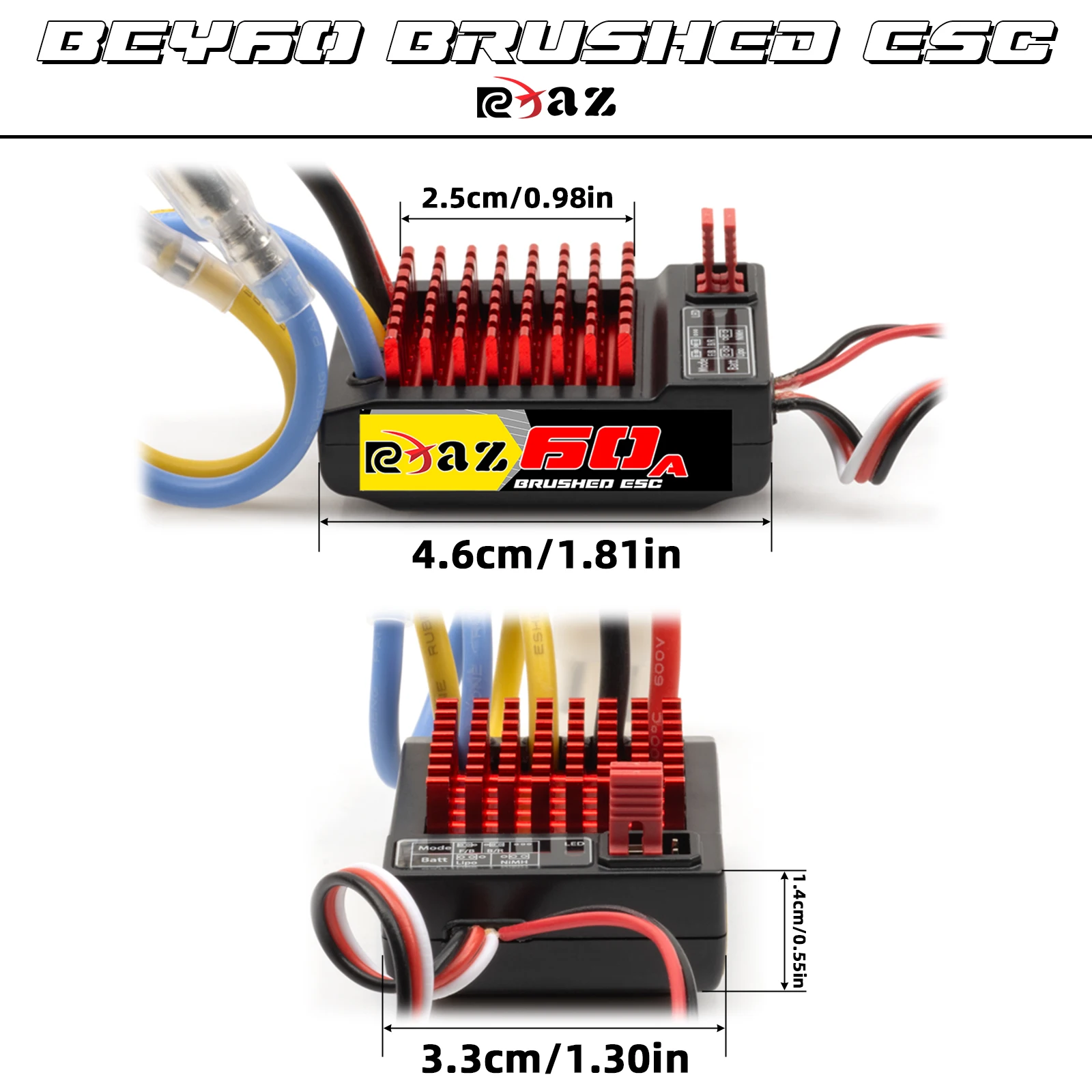

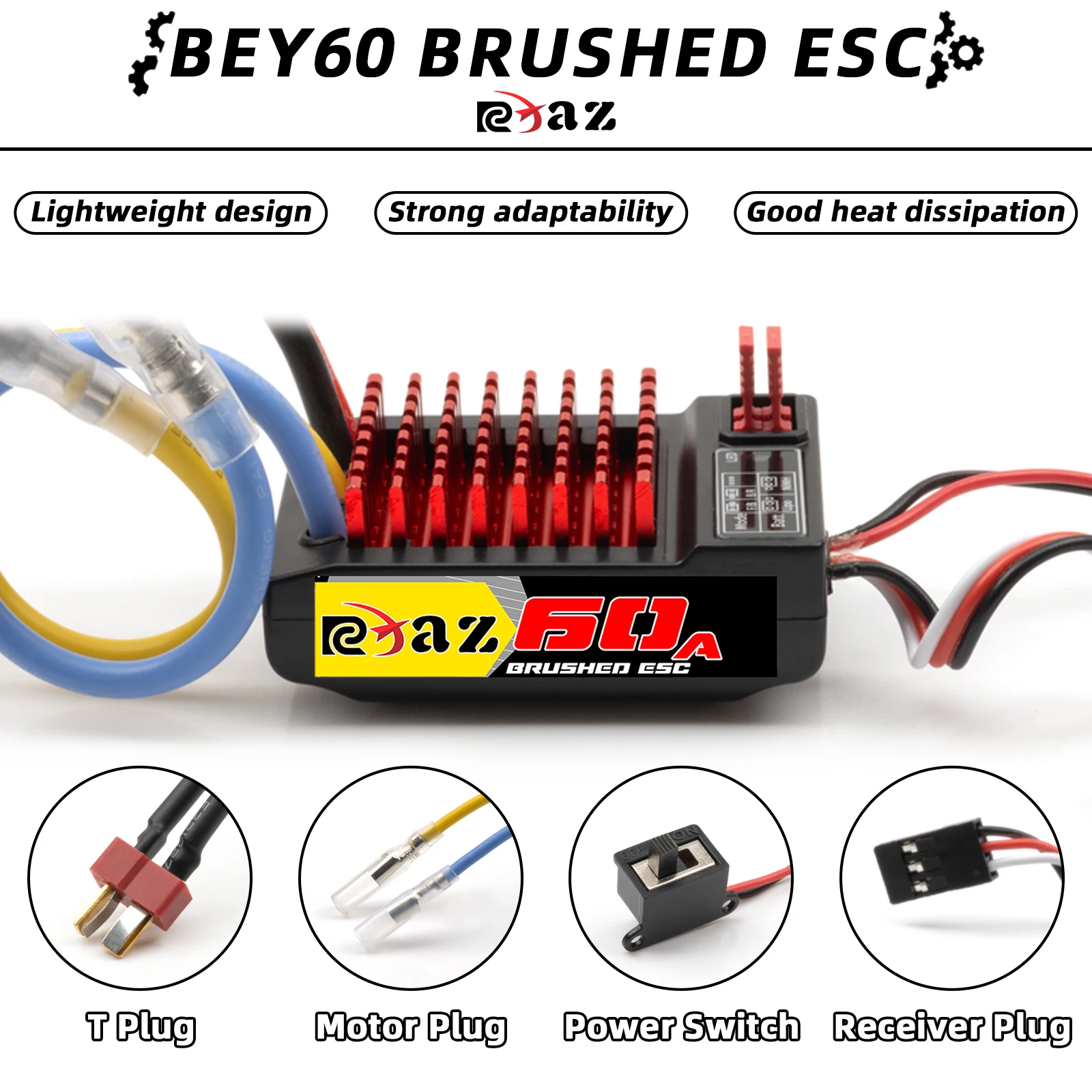

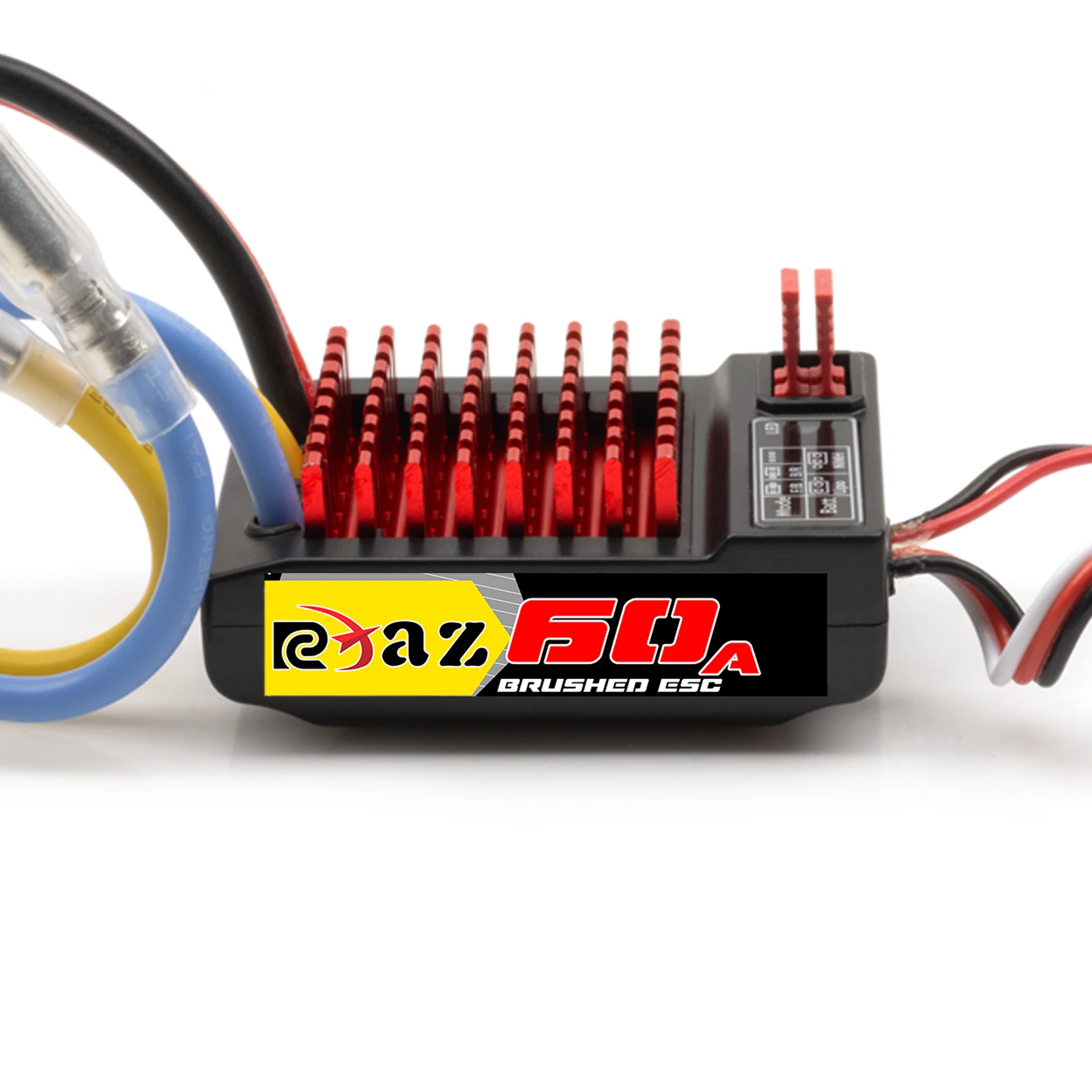

AEY60 Bidirectional 60A Electronic Speed Controller (ESC)
-
High Current Handling: Supports a continuous current of 60A with a peak forward burst current of up to 320A for demanding off-road maneuvers.
-

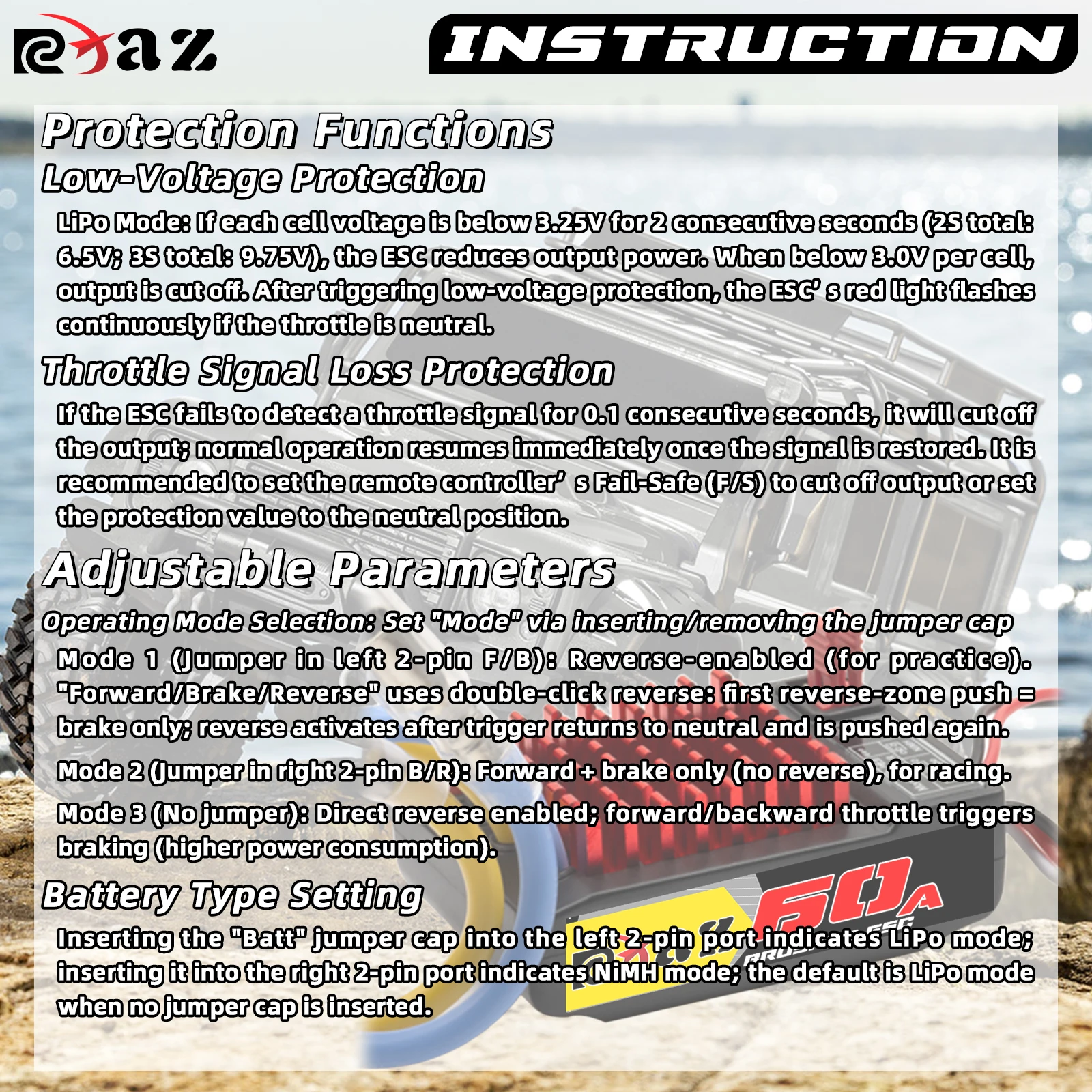

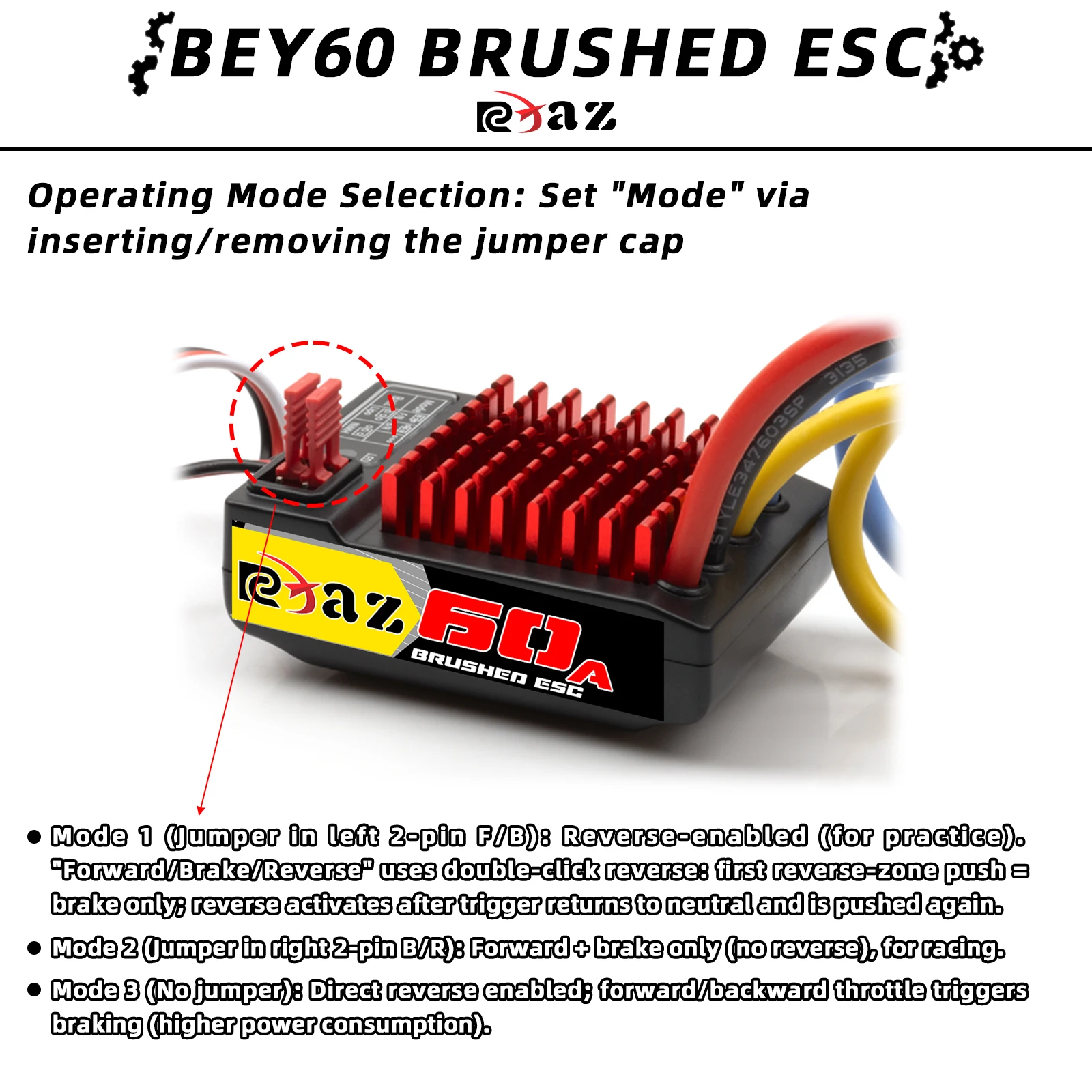

3 Selectable Driving Modes: Features configurable driving modes tailored for different driving styles (Forward/Brake/Reverse, Forward/Brake, and Crawler Drag-Brake mode).
-
Integrated 6V/2A BEC: Provides consistent power to your steering servo and auxiliary receivers without requiring an external receiver battery.
-
Wide Voltage & Battery Compatibility: Fully compatible with 2S–3S LiPo battery packs (7.4V–11.1V) as well as 4–9 Cell NiMH battery packs.
Motor Turn Options & Speed Ratings
| Motor Turn | No-Load Speed (at 7.2V) | Recommended Application |
| 12T / 16T | 18,500 – 22,500 RPM | High-speed buggies, short-course trucks, and stadium bashers |
| 25T / 27T | 9,200 – 12,000 RPM | All-around trail trucks, scale buggies, and mixed-terrain driving |
| 40T / 55T | 5,500 – 7,500 RPM | Scale rock crawlers requiring drag-brake hold and fine throttle control |

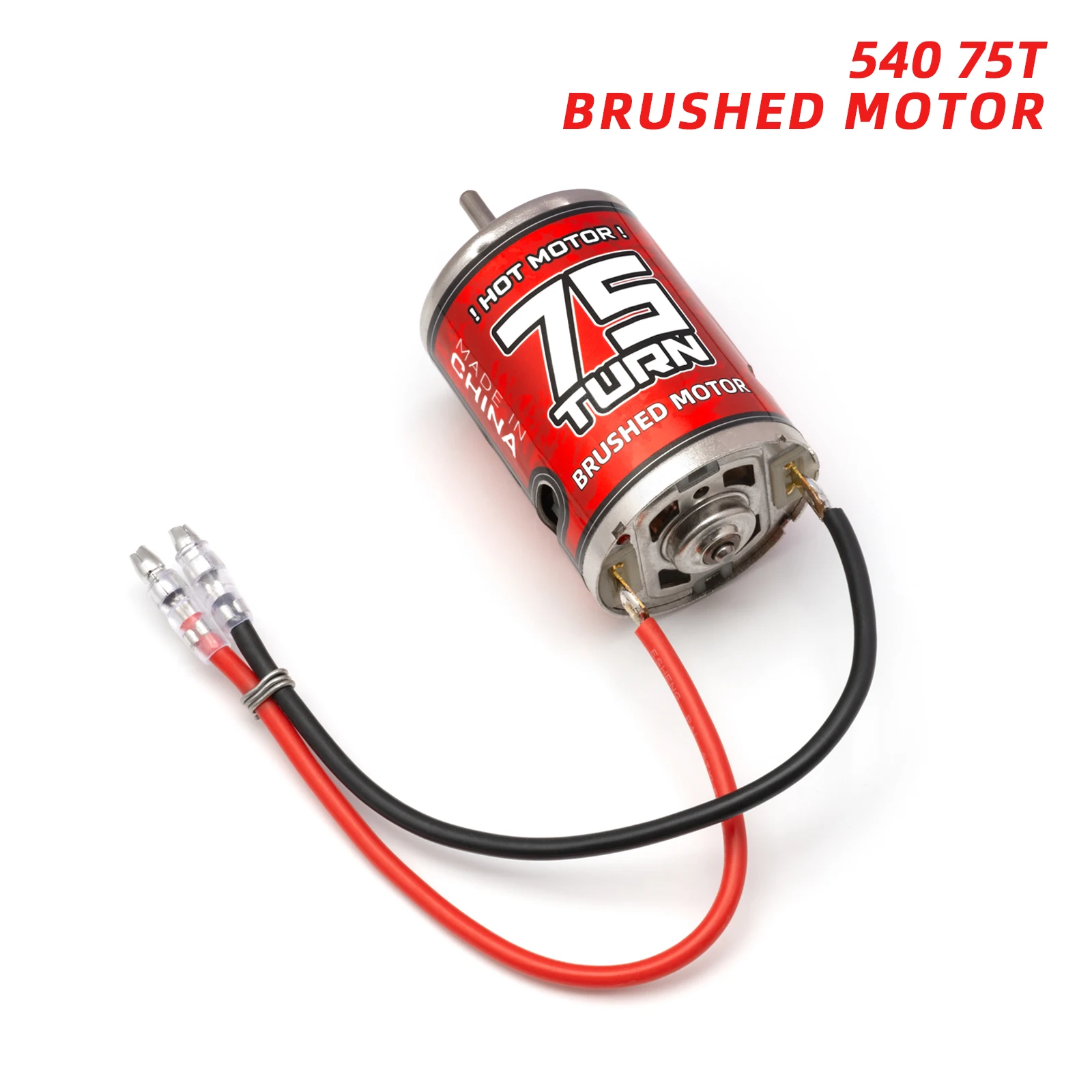

| 75T | 4,000 RPM | Extreme ultra-scale crawling and heavy-duty load hauling |
Technical Specifications
-
Motor Size: Standard 540 Size (36mm Outer Diameter × 50mm Body Length)
-
Motor Shaft Dimensions: 3.175mm (1/8") Shaft Diameter
-
Operating Voltage: 7.2V Nominal (Supports 2S-3S LiPo via ESC)
-
ESC Continuous / Peak Current: 60A Continuous / 320A Peak (Forward: 320A, Reverse: 160A, Brake: 270A)
-
ESC BEC Output: 6V / 2A
-
Supported Motor Sizes: 380 / 390 / 540 / 550 Brushed Motors
-
Battery Support: 2S–3S LiPo / 4–9 Cell NiMH
-
Compatibility: 1/10 & 1/12 Scale Crawlers, Monster Trucks, Off-Road Buggies, Trail Rigs, and Boats
