Basic Parameters

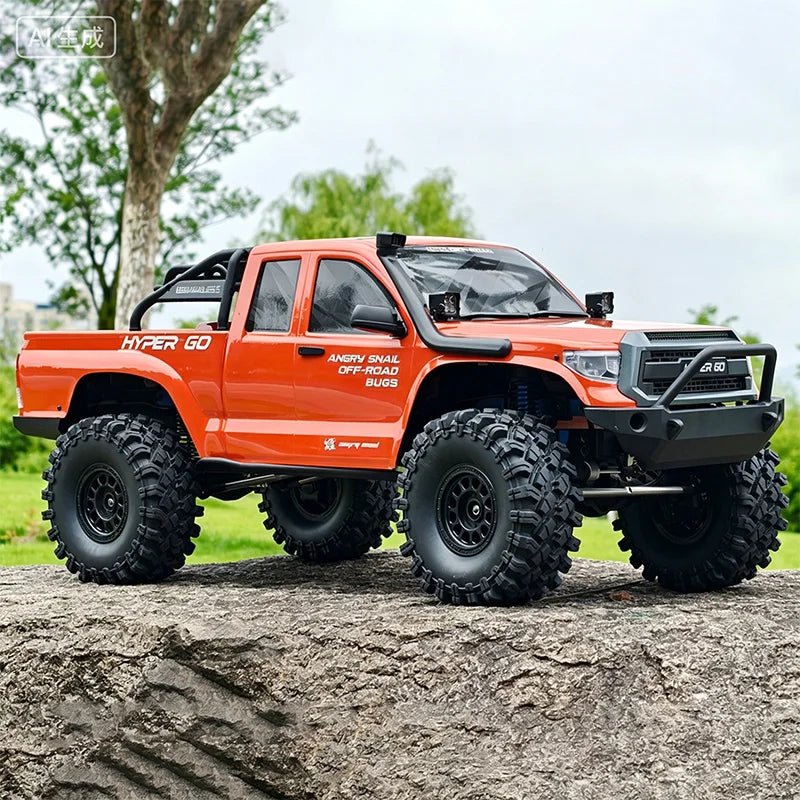

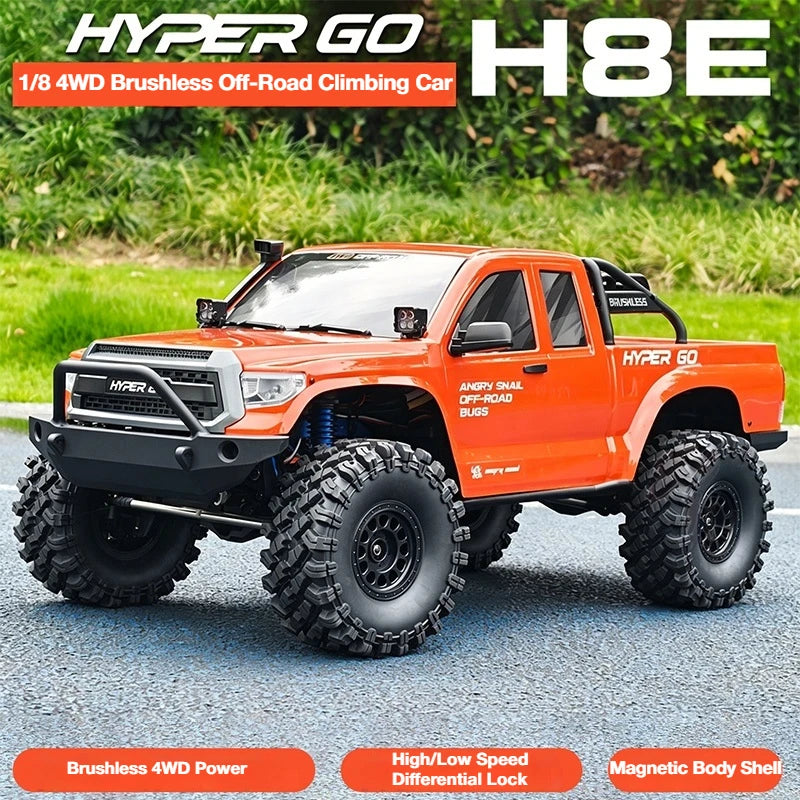

Product model: H8E

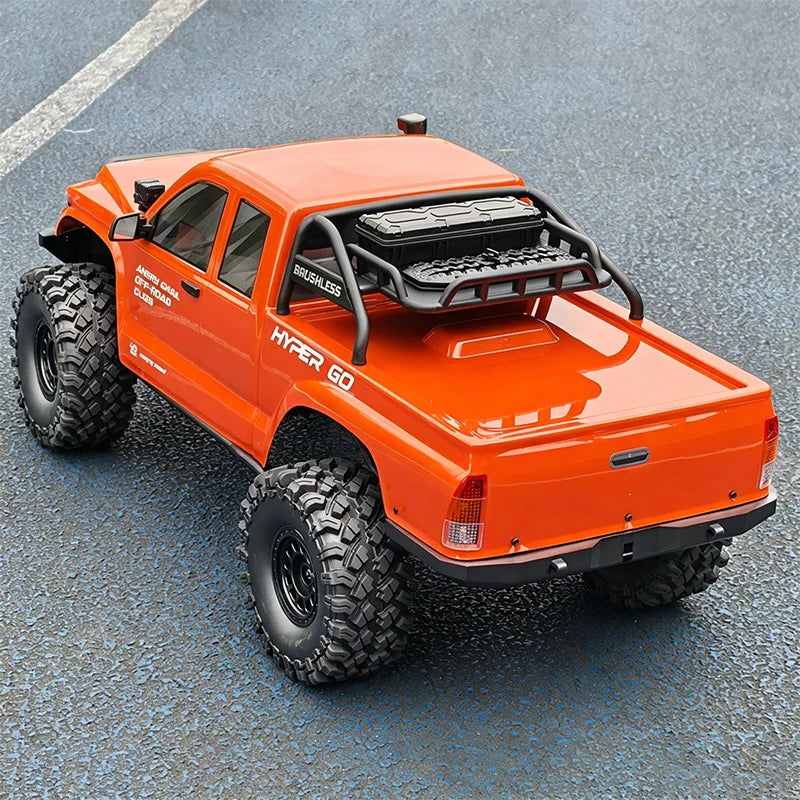

Car shell color: Orange
Proportion: 1/8
Maximum speed (slow gear): 2S 7.5km/h;  3S 11km/h
Maximum speed (fast gear): 2S 17km/h;  3S  25km/h
Remote control distance: ≥ 120m

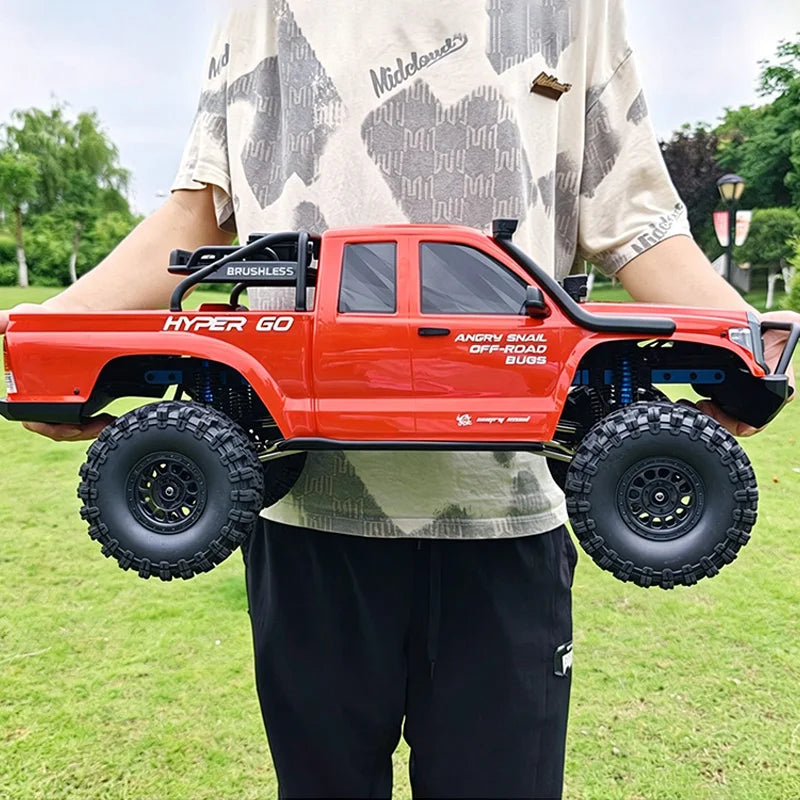

Size and specifications
Product size (mm): 680 × 298 × 255
Wheelbase (mm): 373
Track width (mm): 240
Tire diameter (mm): 135
Vehicle weight: 4.9KG

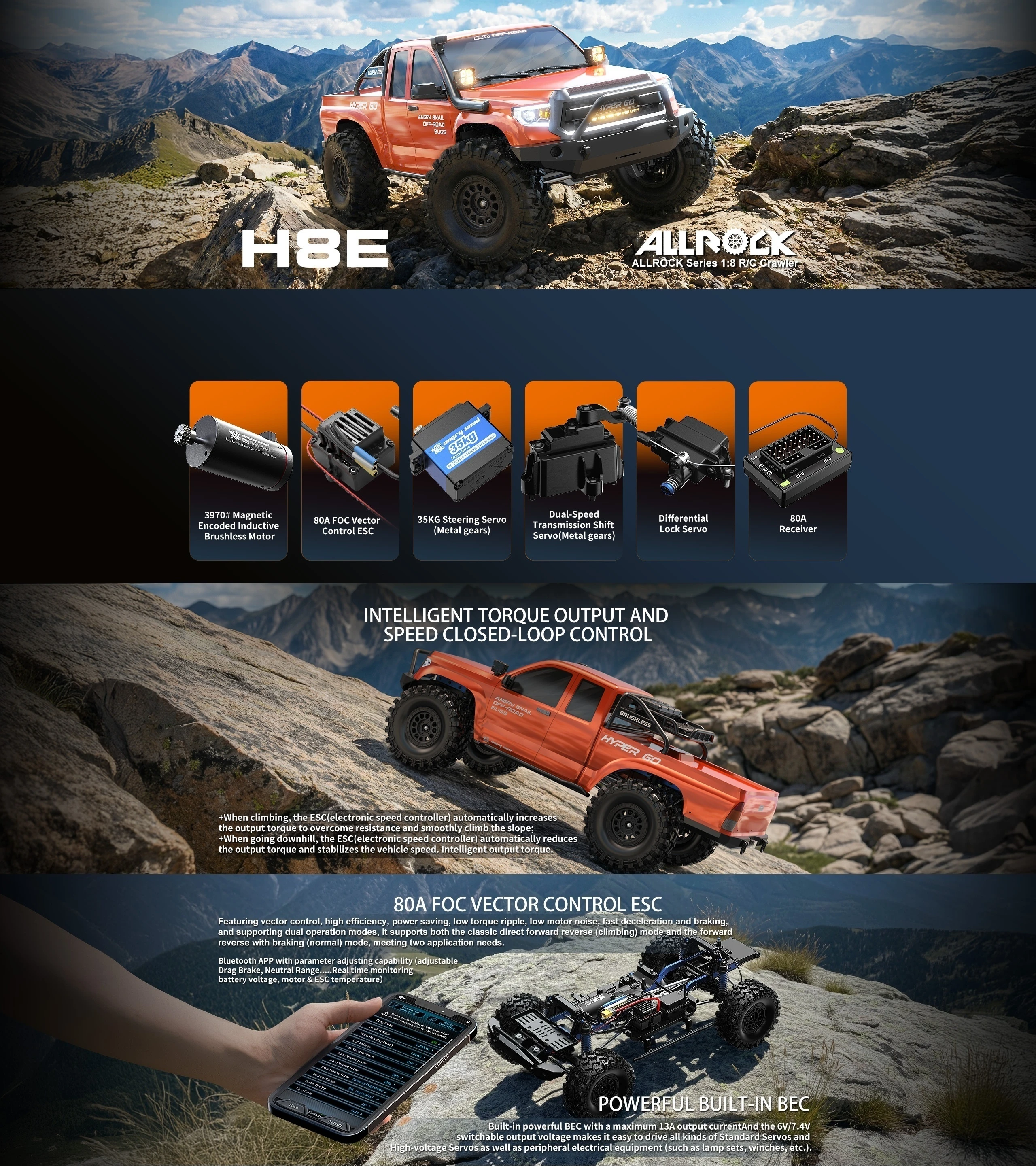

configuration
Motor specification: 3970 2000KV inductive brushless motor
Electric tuning: 80A FOC inductive brushless electric tuning
Servo specification: 35KG steering servo
Receiving and transmitting frequency: 2.4GHz

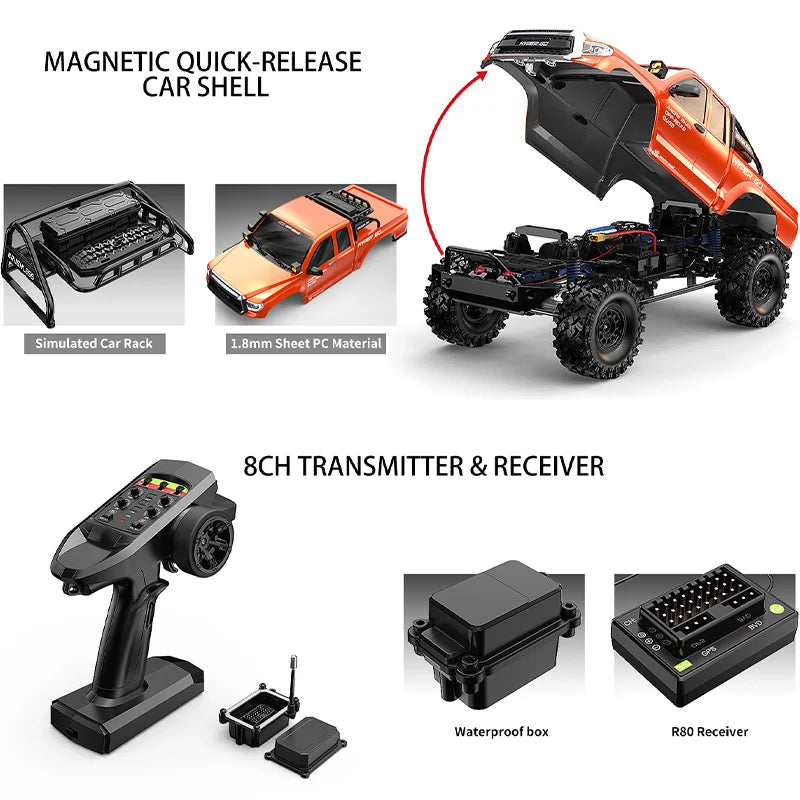

Remote control: 8CH
Remote control battery: 3 * AA (not included)

Packaging Information
Packaging Type: Color Box
Color box size (cm): 77X 37.5 X 33.5cm
Outer box size (cm): 78.5X 38.5 X 34.5cm

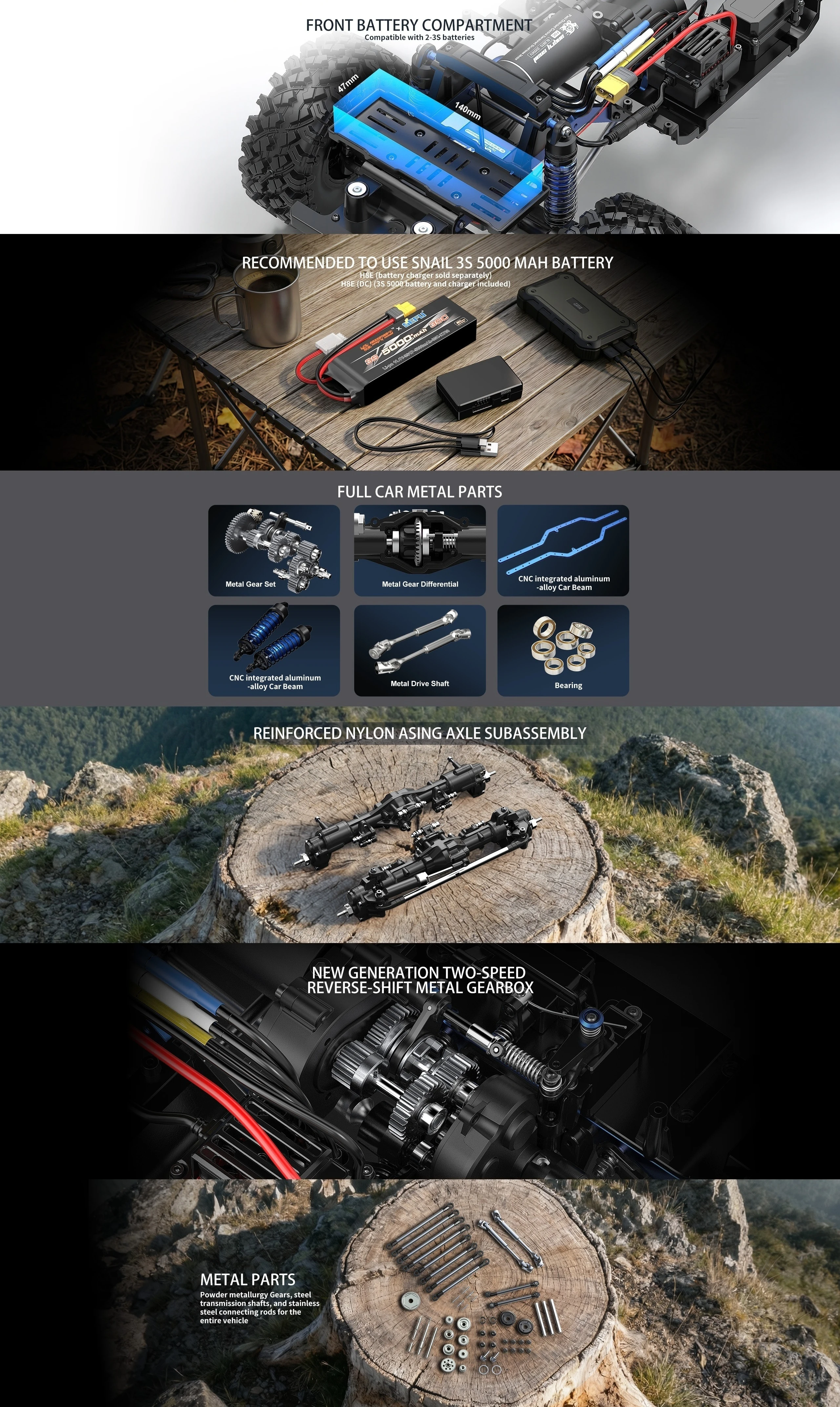

Climbing function configuration
Gate Bridge: Including
Gear ratio: 2nd gear ratio, remote control metal tooth servo switch
Differential: Front/Rear Differential
Differential lock: front/rear differential lock, remote control servo switch
Reverse transmission: including
Linkage mechanism: 4 linkages+tail Watt linkage
Servo position: on the bridge

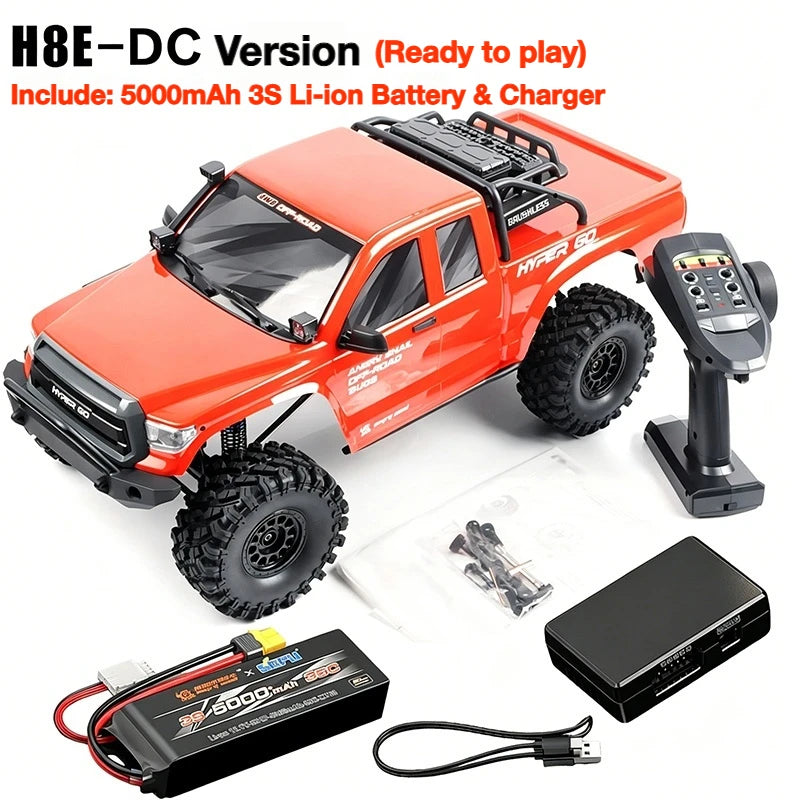

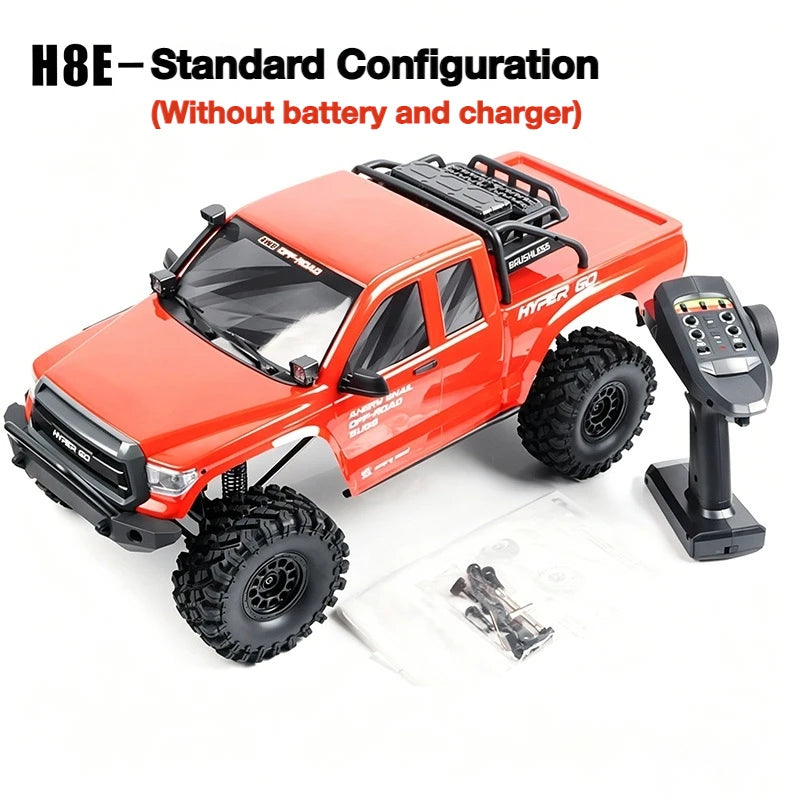

Packing List
Vehicle body (remote control) * 1;
Instruction manual * 1;
1 set of hexagonal wrench;
Screwdriver * 1;
